Pump - Fuel - L Series
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C205 › Pump - Fuel - L Series

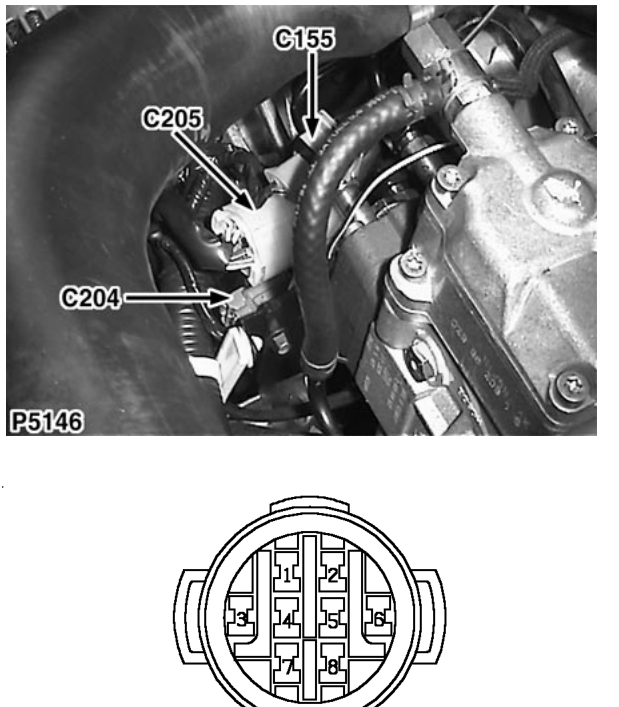

ConnectorsPump - Fuel - L Series
Pump - Fuel - L Series
Female
NATURAL
Front of engine - centre
| Cav | Col | CCT |
|---|---|---|
| 2 | WS | ALL |
| 3 | WP | ALL |
| 4 | NK | ALL |
| 5 | KB | ALL |
| 6 | YB | ALL |
| 7 | R | ALL |
| 8 | O | ALL |
