Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C209 › Female
ConnectorsFemale
Sensor - Mass air flow (MAF)

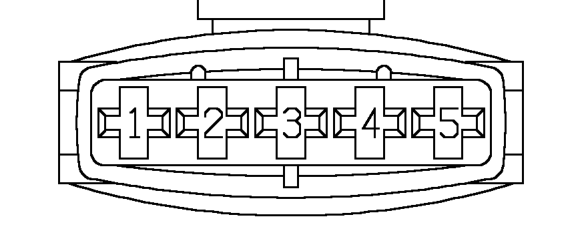

Female
BLACK

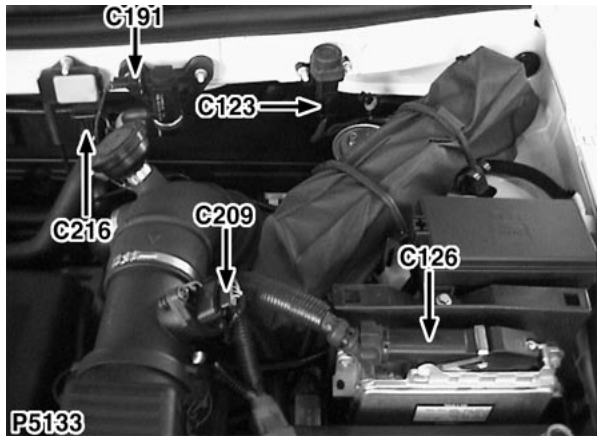

Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 2 | NK | ALL |
| 3 | KB | ALL |
| 4 | OK | ALL |
| 5 | UG | ALL |
