Instrument Pack
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C230 › Instrument Pack

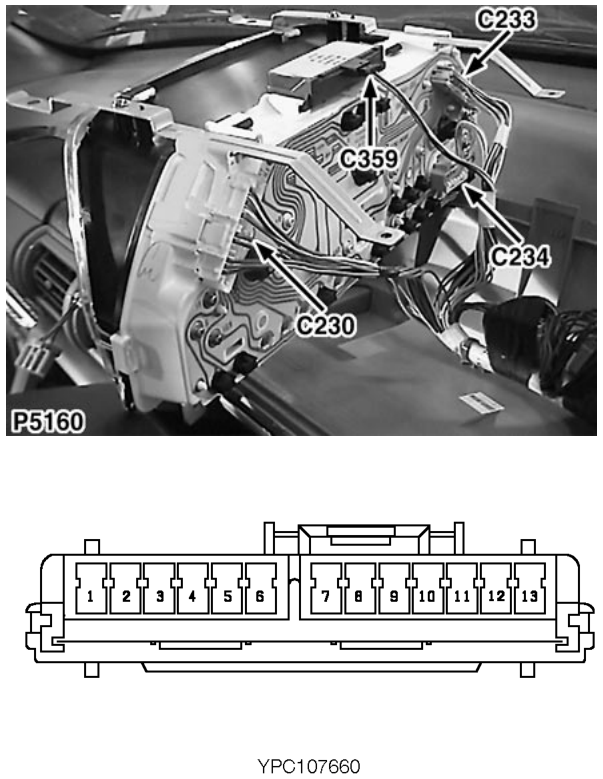

ConnectorsInstrument Pack
Instrument Pack
Female
WHITE
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | P | ALL |
| 2 | GW | ALL |
| 3 | UG | ALL |
| 4 | WO | ALL |
| 5 | U | ALL |
| 7 | GO | ALL |
| 8 | RP | ALL |
| 11 | GP | ALL |
| 12 | UY | ALL |
| 13 | GB | ALL |
