Instrument Pack
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C233 › Instrument Pack
ConnectorsInstrument Pack

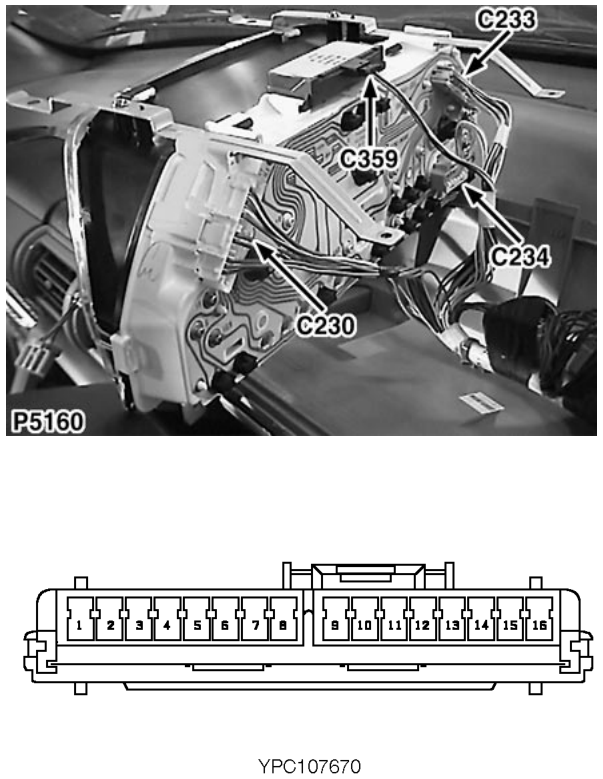

Instrument Pack
Female
LIGHT GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | GU | ALL |
| 3 | PB | ALL |
| 4 | G | ALL |
| 5 | WK | ALL |
| 6 | RO | ALL |
| 8 | BY | 8 |
| 8 | B | 9 |
| Cav | Col | CCT |
|---|---|---|
| 9 | WY | ALL |
| 10 | NY | ALL |
| 11 | YR | ALL |
| 12 | WN | ALL |
| 13 | BW | ALL |
| 14 | WB | ALL |
| 15 | UK | ALL |
| 16 | GR | ALL |
