Instrument Pack
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C234 › Instrument Pack
ConnectorsInstrument Pack
Instrument Pack

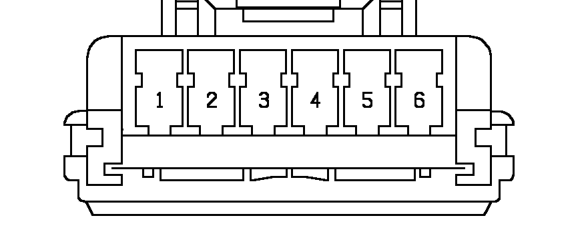

Female
LIGHT GREY

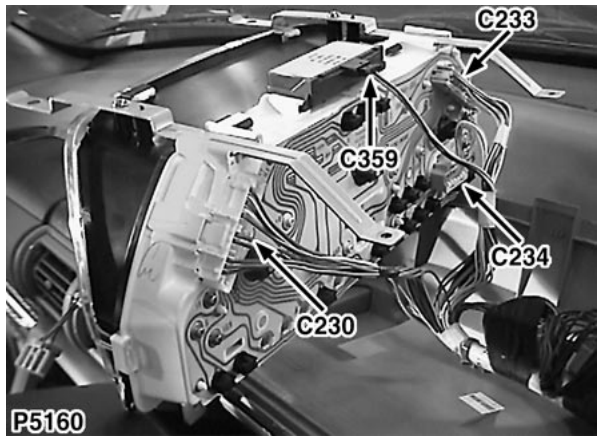

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | Y | ALL |
| 5 | WS | ALL |
| 6 | WR | ALL |
