Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C256 › Female
ConnectorsFemale

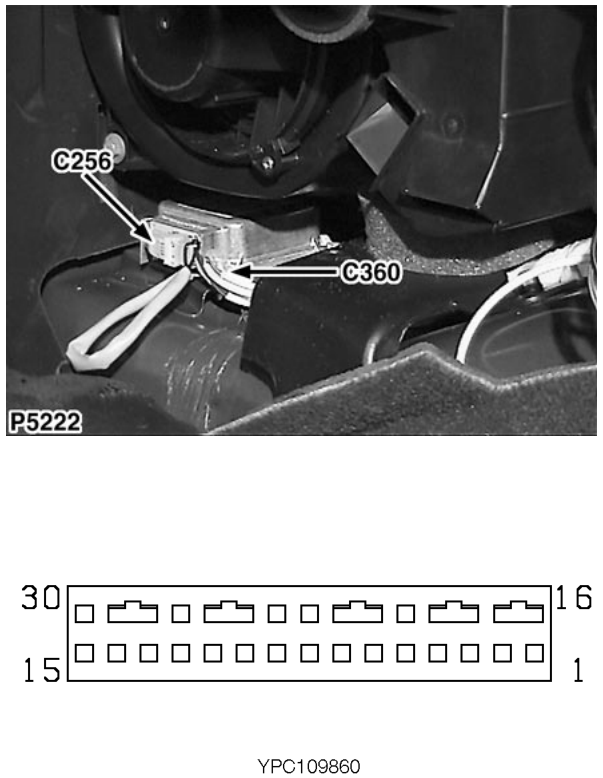

ECU - Air bag
Female
YELLOW
Beneath centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | N | ALL |
| 2 | NR | ALL |
| 3 | O | ALL |
| 4 | OU | ALL |
| 5 | G | ALL |
| 6 | B | ALL |
| 7 | YR | ALL |
| 9 | YK | ALL |
| 10 | Y | ALL |
| 11 | R | ALL |
| 13 | W | ALL |
| 14 | U | ALL |
