Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C275 › Female
ConnectorsFemale

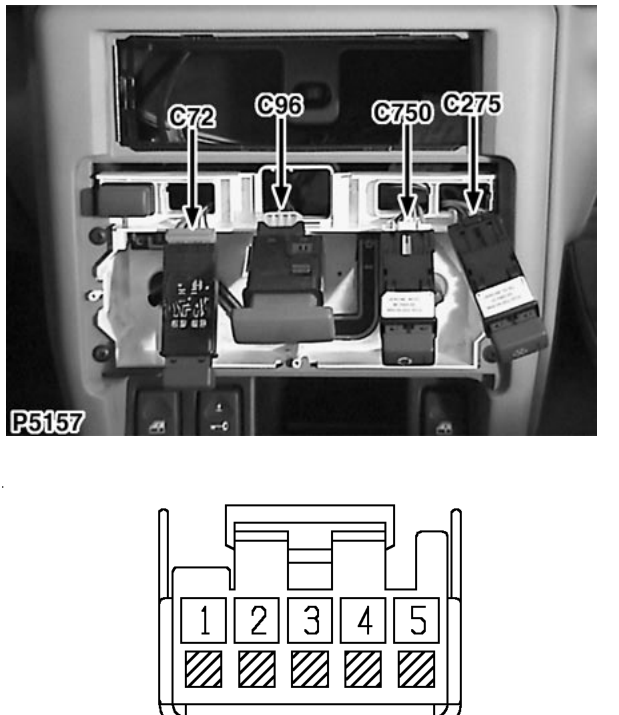

Switch pack - Air conditioning (A/C)
Female
BLACK
Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | SK | 10 |
| 1 | SW | 11 |
| 2 | B | ALL |
| 3 | RB | ALL |
| 4 | SW | 10 |
| 4 | SK | 11 |
| 5 | LGS | ALL |
