Fan - Condenser
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C280 › Fan - Condenser
ConnectorsFan - Condenser
Fan - Condenser

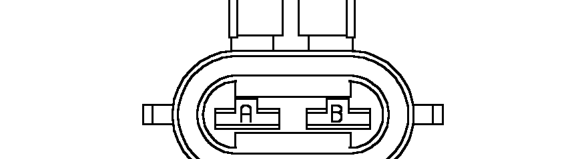

Female
BLACK

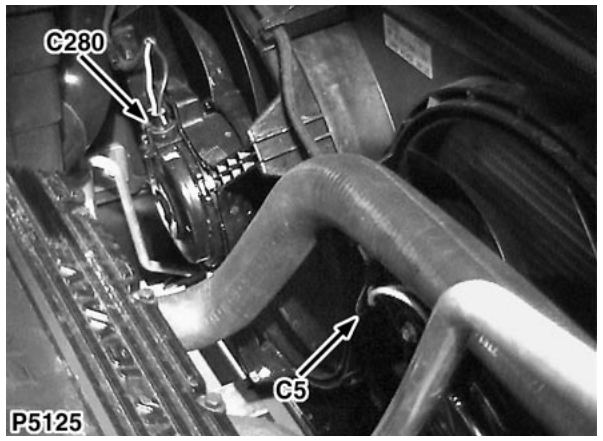

Behind radiator LH side
| Cav | Col | CCT |
|---|---|---|
| 1 | SU | 2 |
| 2 | B | 2 |
