Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C285 › Female
ConnectorsFemale

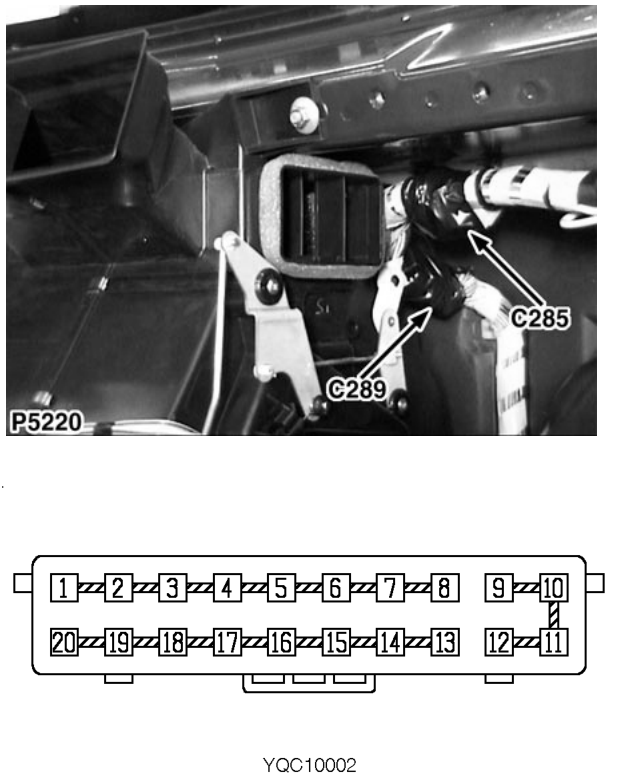

Header joint - Right Hand Drive
Female
GREY
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 6 | B | ALL |
| 7 | B | 6 |
| 8 | B | ALL |
| 9 | GW | ALL |
| 10 | GW | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | GW | ALL |
| 13 | B | ALL |
| 14 | B | ALL |
| 15 | B | ALL |
| 16 | B | ALL |
| 17 | B | ALL |
| 18 | B | 6 |
| 19 | B | ALL |
| 20 | B | ALL |
