Female

Make

Land Rover

Model

Freelander Electrical Library

Year

1998–2000

Section

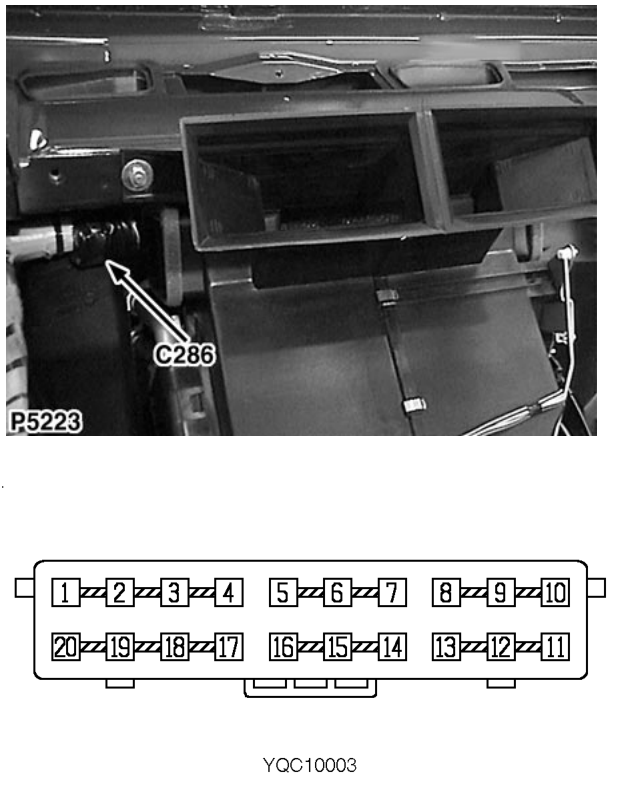

C286 › Female

ConnectorsFemale

Header joint

Female

ORANGE

Behind centre of fascia

Cav	Col	CCT
1	GN	6
2	GN	ALL
3	GN	ALL
4	GN	ALL
5	UB	ALL
6	UB	ALL
7	UB	ALL
8	LGW	ALL
9	LGW	ALL
10	LGW	ALL

Cav	Col	CCT
11	GR	ALL
12	GR	ALL
13	GR	ALL
14	LGB	ALL
15	LGB	ALL
16	LGB	ALL
17	K	ALL
18	K	ALL
19	K	ALL
20	K	ALL

05 General
