Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

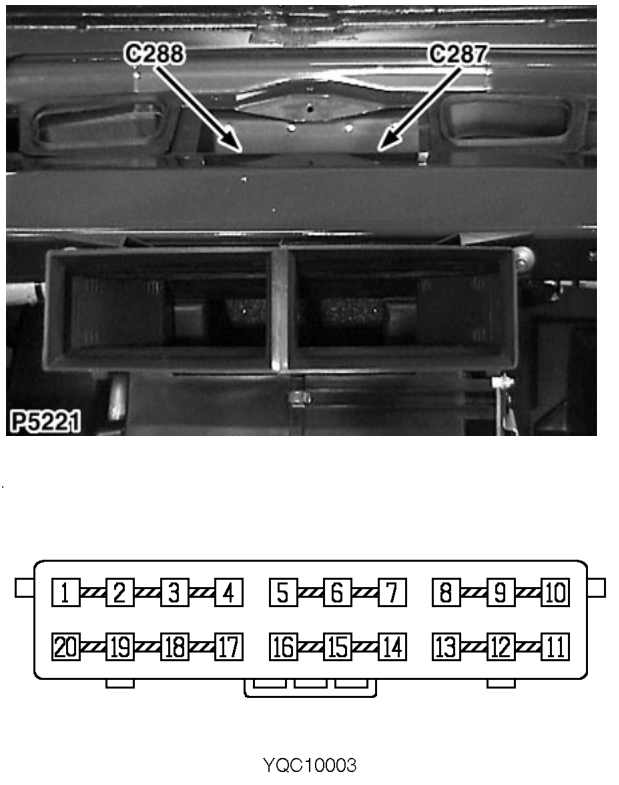

- C287 › Female
ConnectorsFemale
Header joint
Female
ORANGE
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | GP | 6 |
| 2 | GP | ALL |
| 3 | GP | ALL |
| 4 | GP | ALL |
| 5 | SW | ALL |
| 6 | SW | ALL |
| 7 | SW | ALL |
| 8 | NO | ALL |
| 9 | NO | ALL |
| 10 | NO | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | G | ALL |
| 12 | G | ALL |
| 13 | G | 6 |
| 14 | GB | ALL |
| 15 | GB | ALL |
| 16 | GB | ALL |
| 17 | P | ALL |
| 18 | P | ALL |
| 19 | P | ALL |
| 20 | P | ALL |
