Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

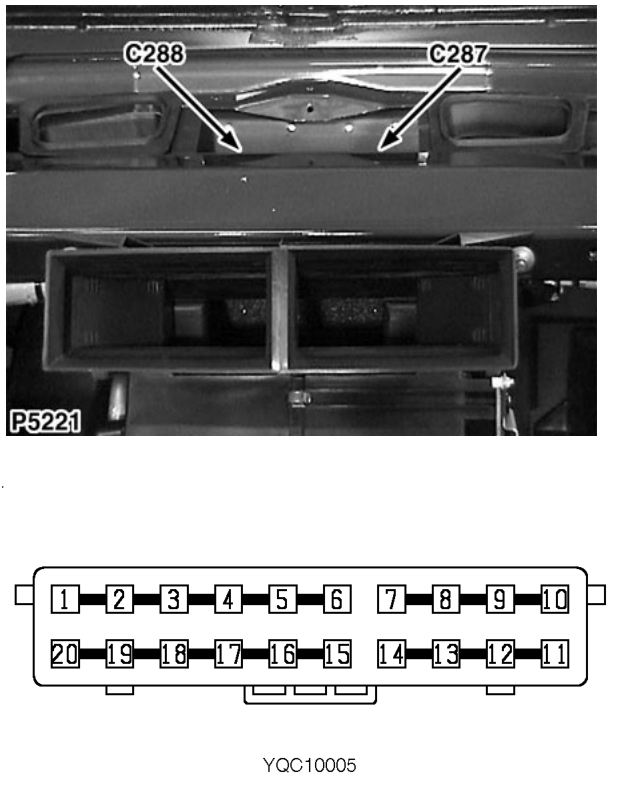

- C288 › Female
ConnectorsFemale
Header joint
Female
BLUE
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | NK | ALL |
| 2 | NK | ALL |
| 3 | NK | ALL |
| 4 | NK | ALL |
| 5 | NK | ALL |
| 7 | PW | ALL |
| 8 | PW | ALL |
| 9 | PW | ALL |
| 10 | PW | ALL |
| 11 | WO | ALL |
| Cav | Col | CCT |
|---|---|---|
| 12 | WO | 6 |
| 13 | WO | ALL |
| 14 | WO | ALL |
| 15 | RB | ALL |
| 15 | RO | ALL |
| 16 | RO | ALL |
| 17 | RB | ALL |
| 17 | RO | ALL |
| 18 | RO | ALL |
