Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

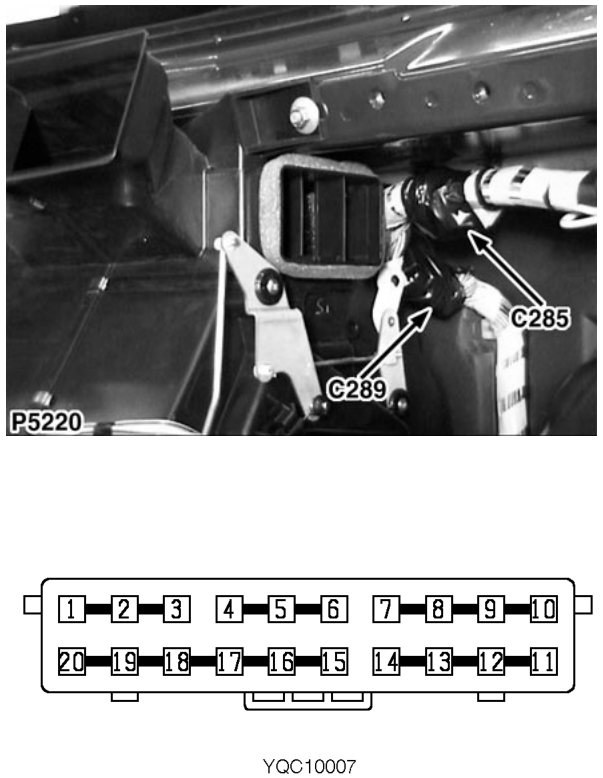

- C289 › Female
ConnectorsFemale
Header joint
Female
BLACK
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | YK | ALL |
| 2 | WY | ALL |
| 3 | YK | ALL |
| 4 | LG | 6 |
| 5 | G | 6 |
| 6 | LG | ALL |
| 7 | PW | ALL |
| 8 | PW | ALL |
| 9 | PW | ALL |
| 10 | PW | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | YK | ALL |
| 12 | YK | ALL |
| 13 | YK | 6 |
| 14 | YK | ALL |
| 16 | O | ALL |
| 17 | O | ALL |
| 18 | O | ALL |
| 19 | O | ALL |
| 20 | O | ALL |
