Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

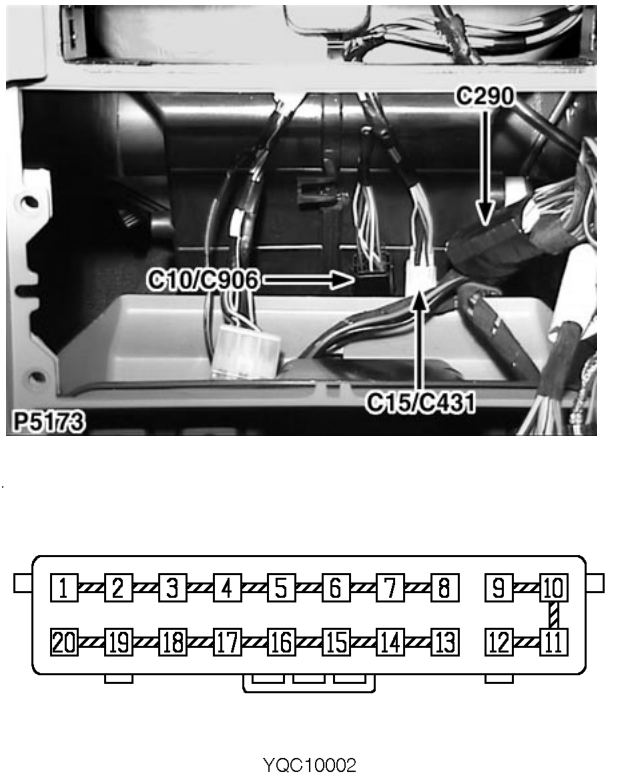

- C290 › Female
ConnectorsFemale
Header joint
Female
GREY
Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | ALL |
| 9 | RO | ALL |
| 10 | RO | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | RO | ALL |
| 12 | RO | ALL |
| 13 | RO | ALL |
| 14 | RO | ALL |
| 15 | RO | ALL |
| 16 | RO | ALL |
| 17 | RO | ALL |
| 18 | RO | ALL |
| 19 | RO | ALL |
| 20 | RO | ALL |
