Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C291 › Female
ConnectorsFemale
Header joint
Female
YELLOW

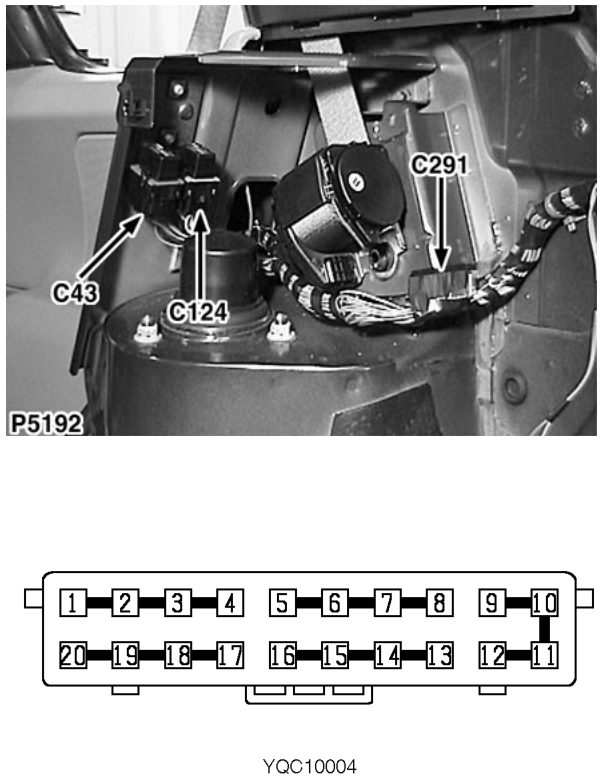

Behind RH rear trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | GP | ALL |
| 2 | GP | ALL |
| 3 | GP | ALL |
| 4 | GP | ALL |
| 5 | RO | ALL |
| 6 | RO | ALL |
| 7 | RO | ALL |
| 8 | RO | ALL |
| 9 | RY | ALL |
| Cav | Col | CCT |
|---|---|---|
| 10 | RY | ALL |
| 11 | RY | ALL |
| 12 | RY | ALL |
| 13 | GW | ALL |
| 14 | GW | ALL |
| 15 | GW | ALL |
| 17 | GN | ALL |
| 18 | GN | ALL |
| 19 | GN | ALL |
