Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C292 › Female
ConnectorsFemale

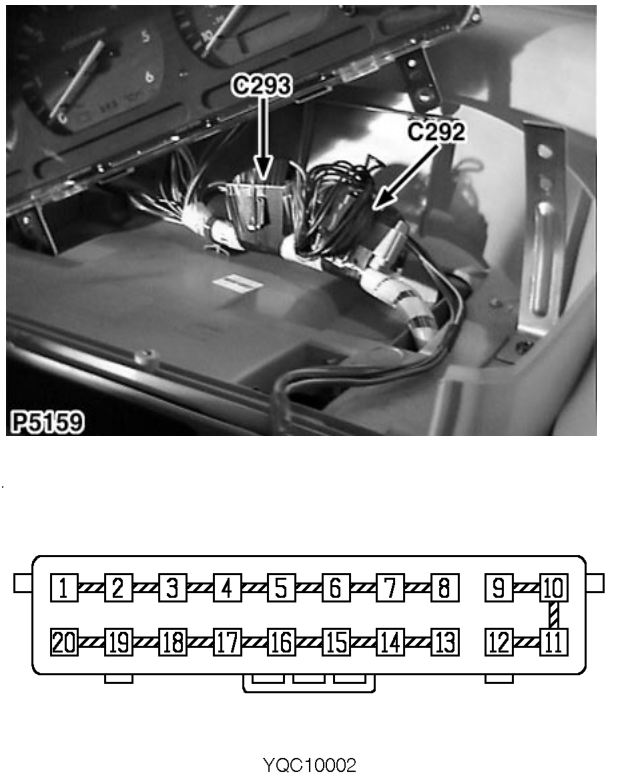

Header joint
Female
GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | B | 9 |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | 8 |
| 8 | B | ALL |
| 9 | P | ALL |
| Cav | Col | CCT |
|---|---|---|
| 10 | P | ALL |
| 11 | P | ALL |
| 14 | B | ALL |
| 15 | B | 5 |
| 16 | B | ALL |
| 17 | B | ALL |
| 19 | B | ALL |
| 20 | B | ALL |
