Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

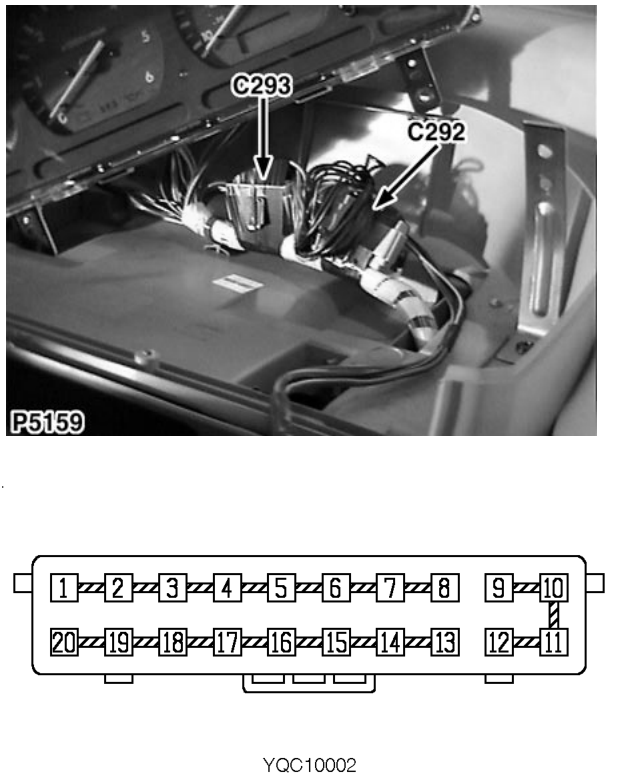

- C293 › Female
ConnectorsFemale
Header joint
Female
GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | RO | ALL |
| 2 | RO | ALL |
| 3 | RO | ALL |
| 4 | RO | ALL |
| 5 | RO | ALL |
| 6 | RO | ALL |
| 7 | RO | ALL |
| 13 | G | 8 |
| 15 | G | ALL |
| 16 | G | ALL |
