Land Rover Freelander Electrical Library (1998-2000)05 · Connectors
05 · General

Lamp - Interior - Front

Make
Land Rover
Model
Freelander Electrical Library
Year
1998–2000
Section
C355 › Lamp - Interior - Front
ConnectorsLamp - Interior - Front

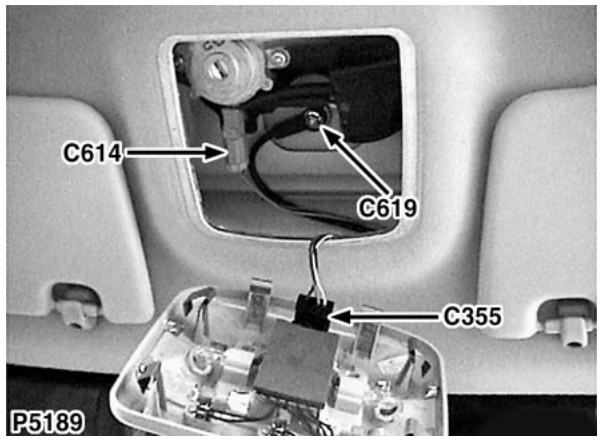

Diagram

Lamp - Interior - Front

Female

BLACK

Behind interior light

Female – Behind interior light
CavColCCT
1B3
3P3
4PW3
