Land Rover Freelander Electrical Library (1998-2000)05 · Connectors
05 · General

Lamp - Interior - Rear

Make
Land Rover
Model
Freelander Electrical Library
Year
1998–2000
Section
C356 › Lamp - Interior - Rear
ConnectorsLamp - Interior - Rear

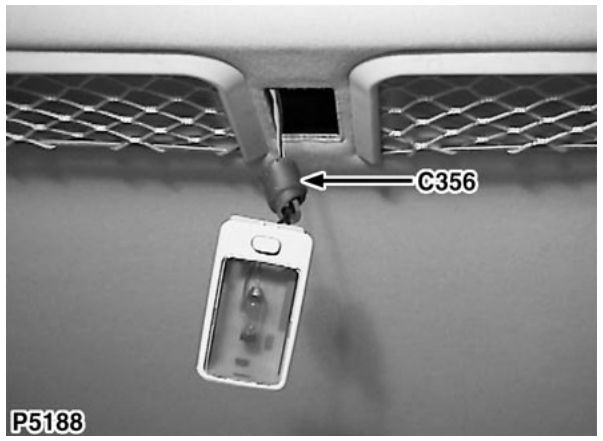

Diagram

Lamp - Interior - Rear

Female

BLACK

Behind interior light

Female – Behind interior light
CavColCCT
1P3
2PW3
3B3
