Female

Make

Land Rover

Model

Freelander Electrical Library

Year

1998–2000

Section

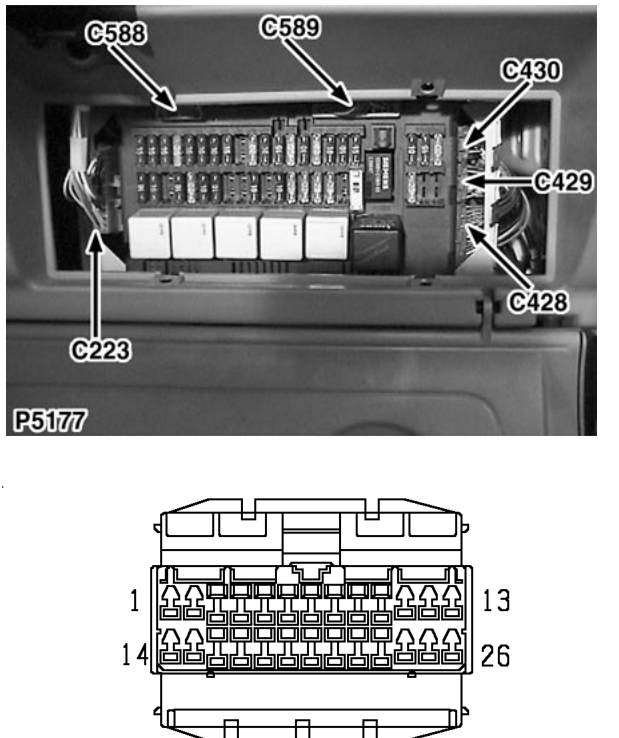

C428 › Female

ConnectorsFemale

Body control unit (BCU)

Female

GREY

Behind fascia trim panel

Cav	Col	CCT
1	GB	ALL
2	LGB	ALL
3	G	ALL
4	GN	ALL
5	NG	ALL
6	NB	ALL
7	BR	ALL
8	BK	ALL
10	BR	ALL
11	BK	ALL
12	US	ALL
13	PY	ALL

Cav	Col	CCT
15	U	ALL
16	NG	ALL
17	OB	ALL
18	ON	ALL
19	BK	ALL
20	BN	ALL
21	PW	ALL
22	RP	ALL
23	BO	ALL
24	PS	ALL
25	WO	ALL
26	S	ALL
