Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C429 › Female
ConnectorsFemale
Central Control Unit (CCU)

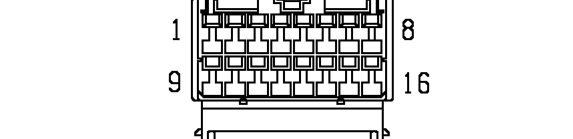

Female
LIGHT GREY

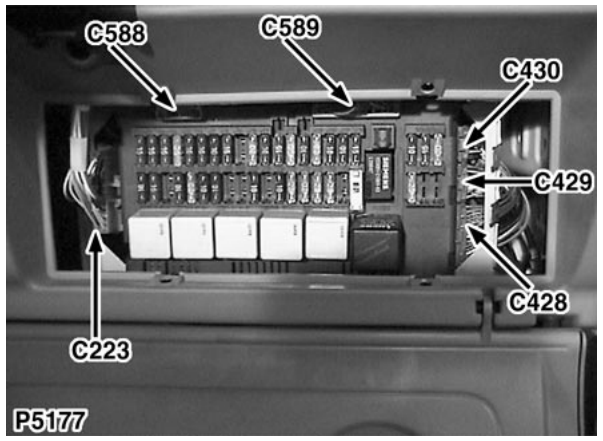

Behind fascia trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | RG | ALL |
| 2 | WB | ALL |
| 3 | RU | ALL |
| 4 | YW | ALL |
| 5 | YB | ALL |
| 6 | WK | ALL |
| 7 | YR | ALL |
| 8 | SW | ALL |
| 9 | Y | ALL |
| 12 | SP | ALL |
| 13 | SR | ALL |
| 14 | YK | ALL |
| 15 | BY | ALL |
| 16 | GY | ALL |
