Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C430 › Female
ConnectorsFemale
Body control unit (BCU)

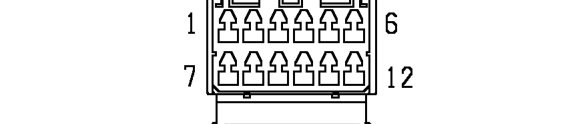

Female
LIGHT GREY

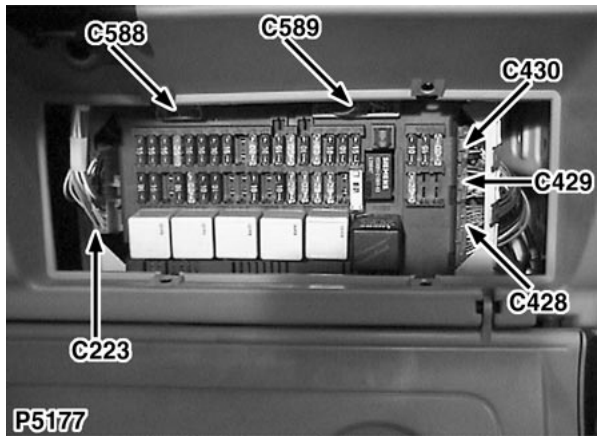

Behind fascia trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | NLG | ALL |
| 2 | PU | ALL |
| 3 | NK | ALL |
| 4 | K | ALL |
| 5 | PY | ALL |
| 6 | PB | ALL |
| 7 | O | ALL |
| 8 | LGK | ALL |
| 9 | K | ALL |
| 10 | KB | ALL |
