Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C450 › Male
ConnectorsMale
Main harness to engine harness

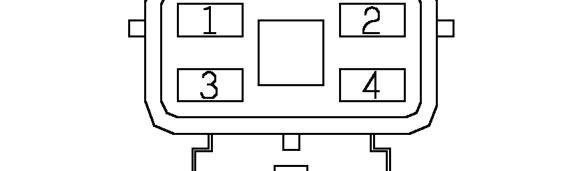

Male
BLACK

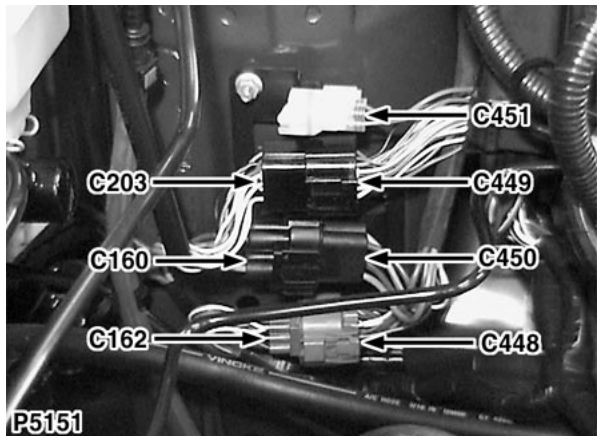

Lower LH rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | NR | ALL |
| 2 | PS | ALL |
| 3 | SU | ALL |
| 4 | N | ALL |
