Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C451 › Male
ConnectorsMale
Main harness to engine harness

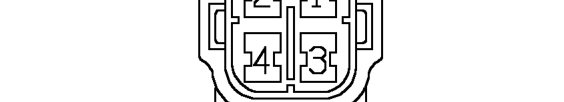

Male
NATURAL

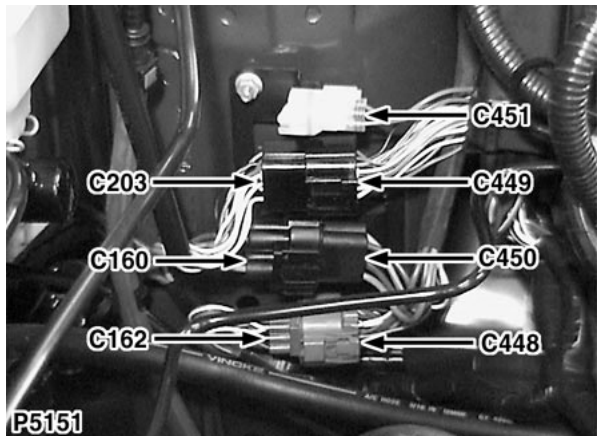

Lower LH rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | LGR | ALL |
| 2 | W | ALL |
| 3 | YG | ALL |
| 4 | PO | ALL |
