Land Rover Freelander Electrical Library (1998-2000)05 · Connectors
05 · General

Lamp - Reverse - RH

Make
Land Rover
Model
Freelander Electrical Library
Year
1998–2000
Section
C455 › Lamp - Reverse - RH
ConnectorsLamp - Reverse - RH

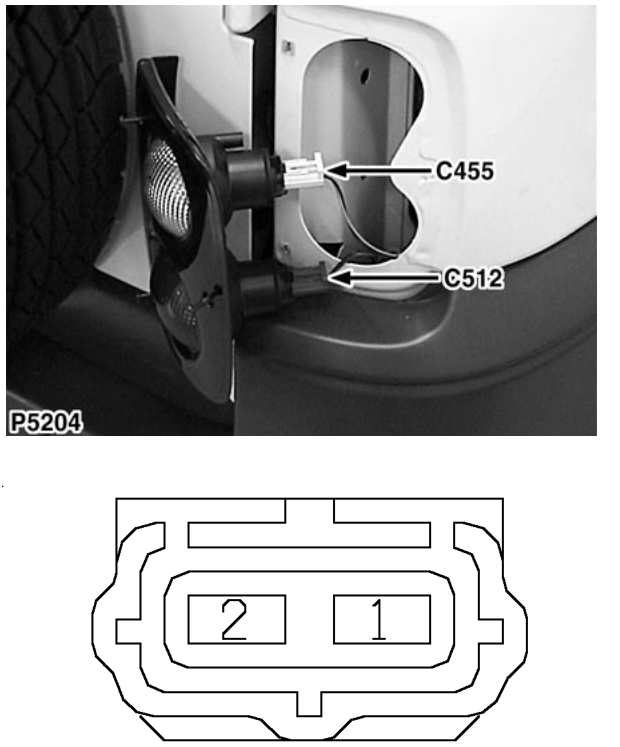

Diagram

Lamp - Reverse - RH

Female

WHITE

RH rear of vehicle

CavColCCT
1BALL
2GNALL
