Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C483 › Female
ConnectorsFemale

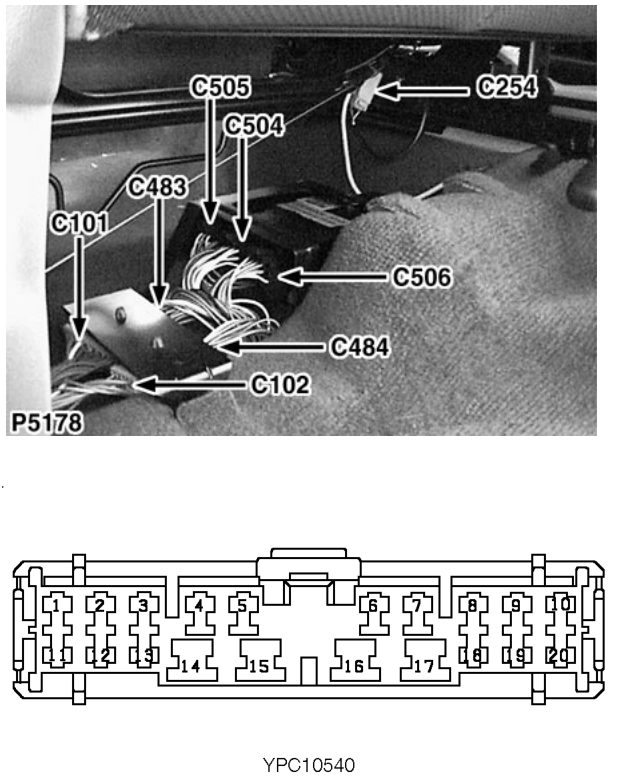

Main harness to body harness
Female
LIGHT GREY
Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 1 | GB | ALL |
| 2 | RB | ALL |
| 3 | GP | ALL |
| 4 | GN | ALL |
| 5 | BO | ALL |
| 6 | PY | ALL |
| 7 | ON | ALL |
| 8 | NG | ALL |
| 9 | YB | ALL |
| 10 | YW | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | OB | ALL |
| 12 | RU | ALL |
| 13 | RG | ALL |
| 14 | N | ALL |
| 15 | PR | ALL |
| 16 | PN | ALL |
| 17 | WP | ALL |
| 18 | RY | ALL |
| 19 | PU | ALL |
| 20 | US | ALL |
