Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C484 › Female
ConnectorsFemale

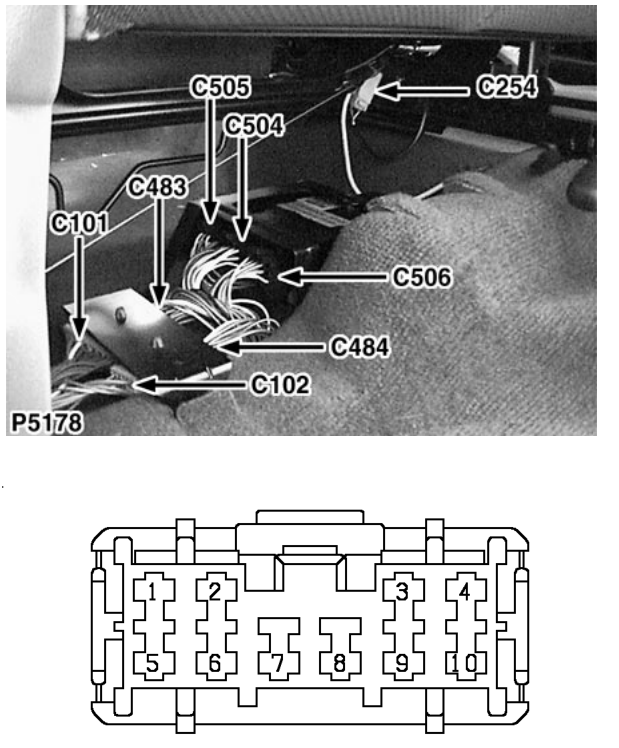

Main harness to body harness
Female
LIGHT GREY
Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 1 | P | ALL |
| 2 | SP | ALL |
| 3 | RO | ALL |
| 4 | GW | ALL |
| 5 | GR | ALL |
| 6 | KB | ALL |
| 7 | SR | ALL |
| 8 | PW | ALL |
| 9 | GR | ALL |
