Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C496 › Female
ConnectorsFemale

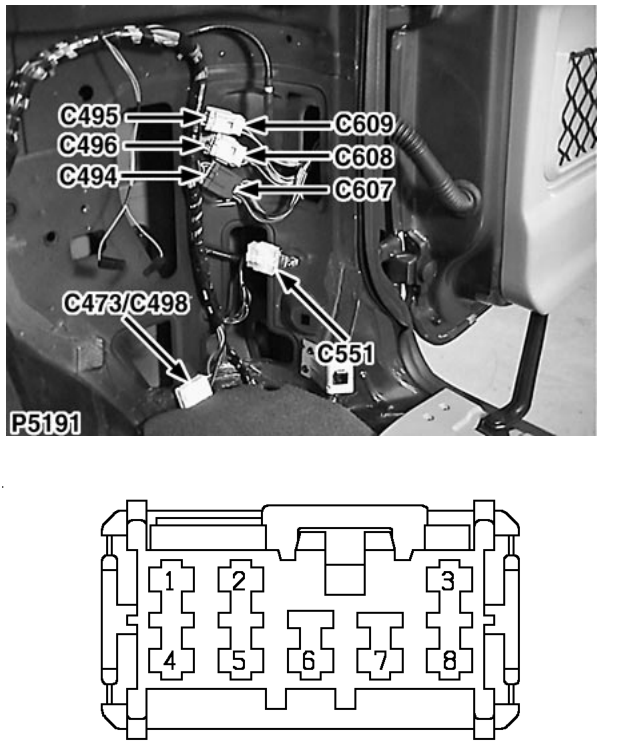

Body harness to taildoor harness
Female
LIGHT GREY
Behind RH rear trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | ON | ALL |
| 2 | BO | ALL |
| 3 | RO | ALL |
| 4 | PU | ALL |
| 5 | GP | ALL |
| 6 | B | ALL |
| 7 | GR | ALL |
| 8 | OB | ALL |
