Switch - Roof on
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C497 › Switch - Roof on

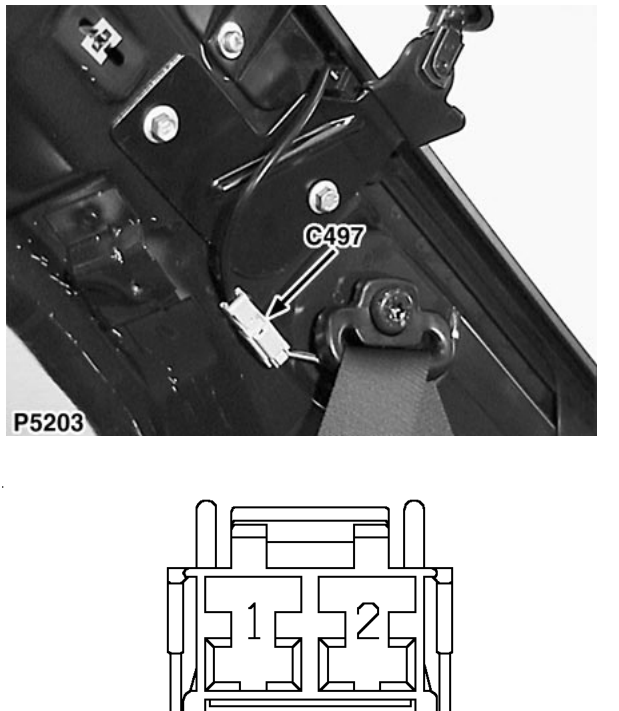

ConnectorsSwitch - Roof on
Switch - Roof on
Female
LIGHT GREY
Base of ’C’ post RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | PY | 4 |
| 2 | P | 4 |
