Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C498 › Female
ConnectorsFemale

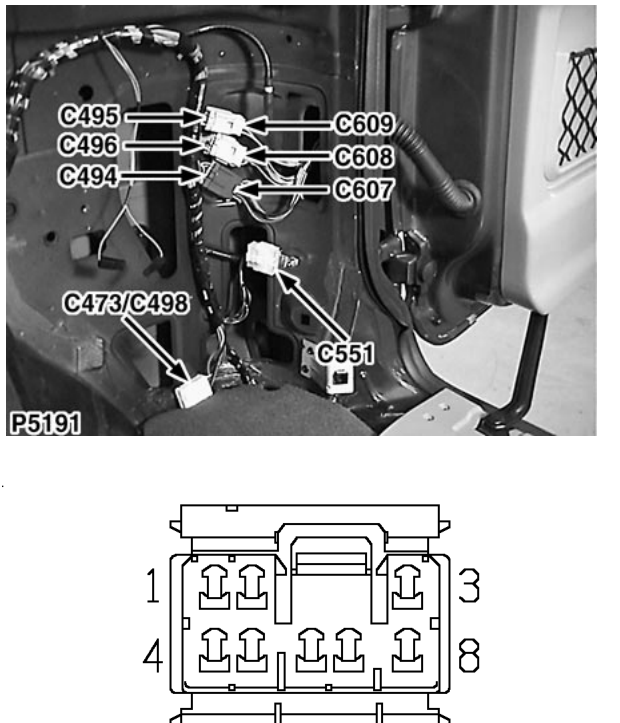

Main harness to trailer connector
Female
WHITE
Behind RH rear trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | Y | ALL |
| 2 | U | ALL |
| 3 | G | ALL |
| 4 | W | ALL |
| 5 | N | ALL |
| 6 | R | ALL |
| 7 | B | ALL |
