Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C499 › Female
ConnectorsFemale

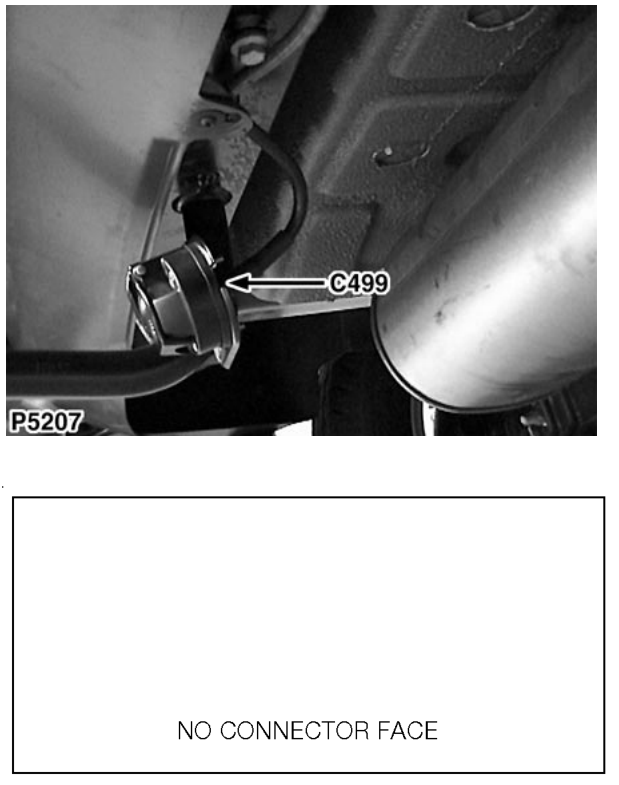

Trailer pick-up
Female
BLACK
Behind centre of rear bumper
| Cav | Col | CCT |
|---|---|---|
| 1 | Y | ALL |
| 2 | U | ALL |
| 3 | W | ALL |
| 4 | G | ALL |
| 5 | N | ALL |
| 6 | R | ALL |
| 7 | B | ALL |
