Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C504 › Female
ConnectorsFemale

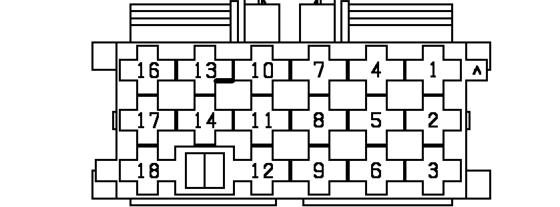

ECU - ABS
Female
BLACK

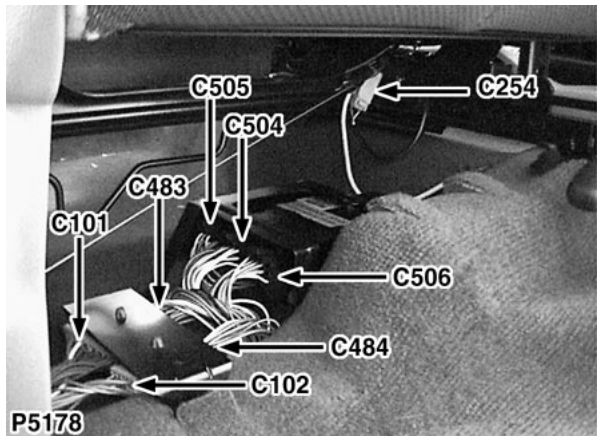

Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 1 | NK | 6 |
| 2 | LG | 6 |
| 3 | WO | 6 |
| 5 | YK | 6 |
| 7 | GN | 6 |
| 8 | NR | 6 |
| 10 | SK | 6 |
| 11 | GB | 6 |
| 12 | B | 6 |
| 13 | WS | 6 |
| 14 | PS | 6 |
| 16 | WY | 6 |
| 17 | WK | 6 |
| 18 | WR | 6 |
