Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C505 › Female
ConnectorsFemale
ECU - ABS

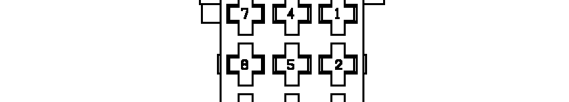

Female
BLACK

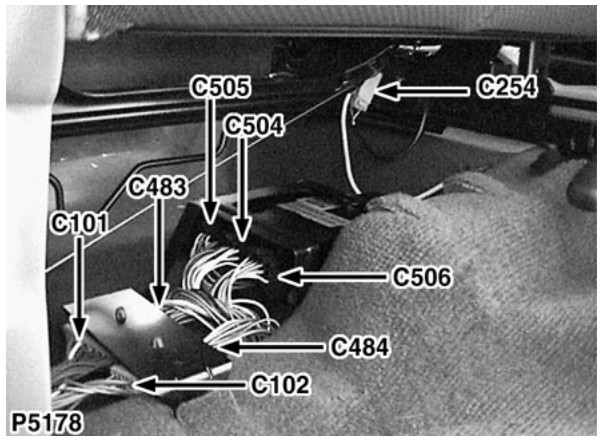

Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 1 | W | 6 |
| 2 | W | 6 |
| 3 | G | 6 |
| 4 | G | 6 |
| 5 | G | 6 |
| 6 | G | 6 |
| 7 | W | 6 |
| 8 | W | 6 |
