Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C550 › Female
ConnectorsFemale
Header joint - Earth

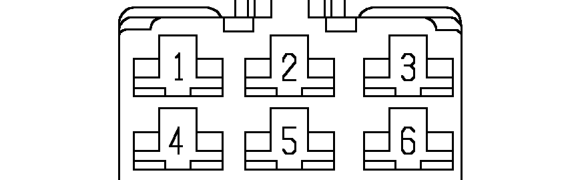

Female
NATURAL

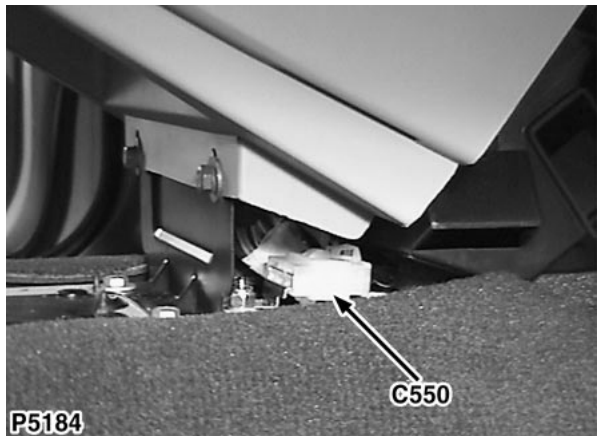

Beneath centre console RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
