Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C551 › Female
ConnectorsFemale

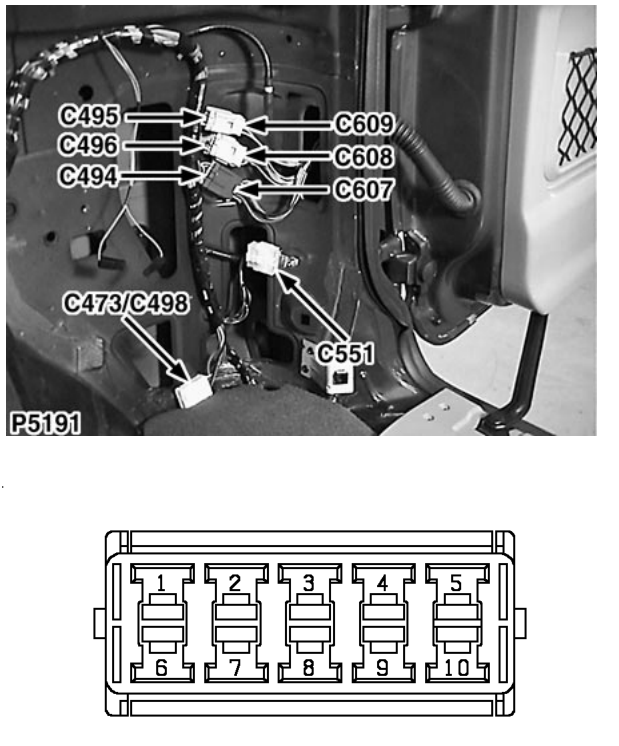

Header joint - Earth
Female
LIGHT GREY
Behind RH rear trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | ALL |
| 9 | B | ALL |
