Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section

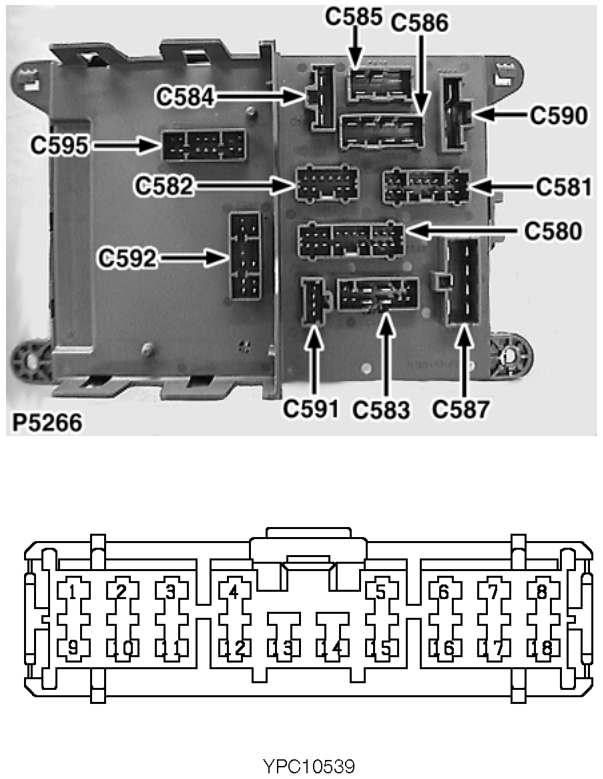

- C580 › Female
ConnectorsFemale
Fuse box - Passenger compartment
Female
LIGHT GREY
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | LGW | ALL |
| 2 | LGK | ALL |
| 4 | G | ALL |
| 5 | LG | ALL |
| 6 | P | ALL |
| 7 | P | ALL |
| 8 | NG | ALL |
| 10 | LGN | ALL |
| Cav | Col | CCT |
|---|---|---|
| 11 | LGN | ALL |
| 12 | G | ALL |
| 13 | BW | ALL |
| 14 | PW | ALL |
| 15 | GW | ALL |
| 16 | LG | ALL |
| 17 | G | ALL |
| 18 | GR | ALL |
