Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C581 › Female
ConnectorsFemale

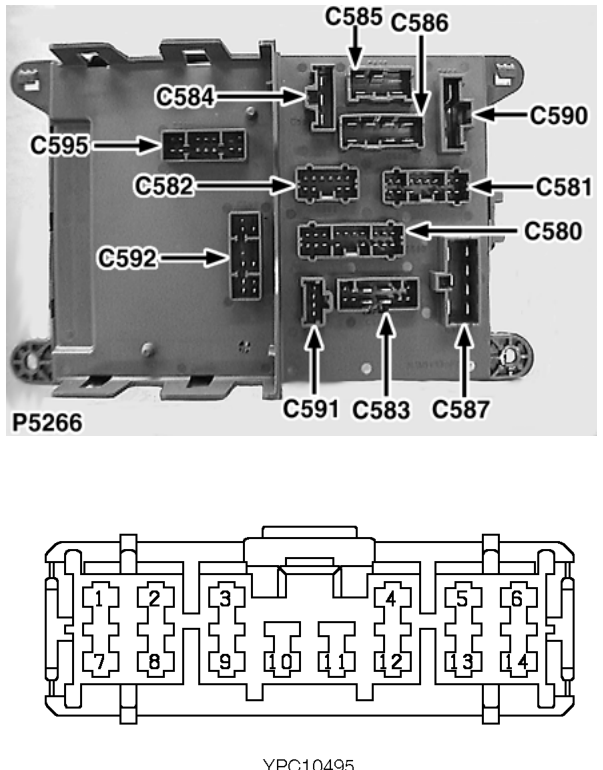

Fuse box - Passenger compartment
Female
LIGHT GREY
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | NO | ALL |
| 2 | WN | ALL |
| 4 | G | ALL |
| 5 | KB | ALL |
| 6 | GR | ALL |
| 7 | NG | ALL |
| 8 | WR | ALL |
| 9 | GY | ALL |
| 10 | W | ALL |
| 11 | UK | ALL |
| 12 | WP | ALL |
| 13 | RB | ALL |
| 14 | GR | ALL |
