Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C582 › Female
ConnectorsFemale

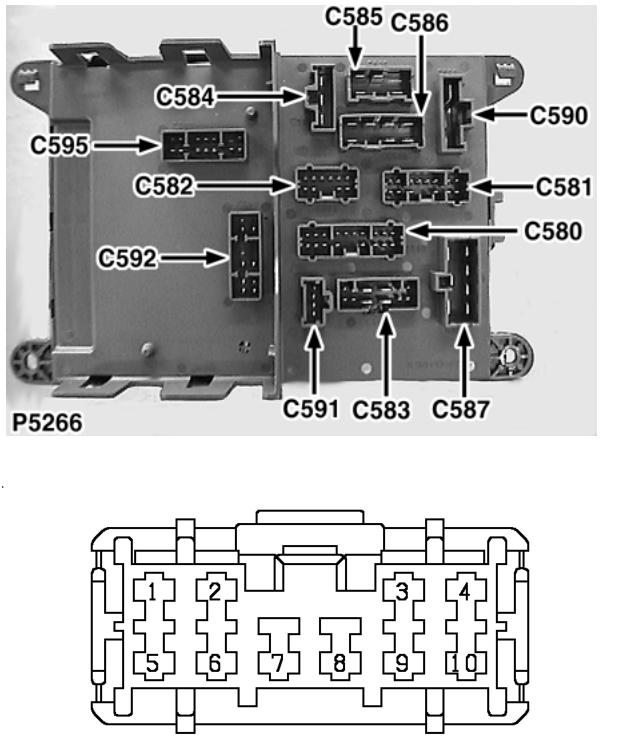

Fuse box - Passenger compartment
Female
LIGHT GREY
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | KG | ALL |
| 2 | RO | ALL |
| 3 | GW | ALL |
| 4 | GW | ALL |
| 5 | NG | ALL |
| 6 | UB | ALL |
| 8 | BW | ALL |
| 9 | LG | ALL |
| 10 | LG | ALL |
