Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C583 › Female
ConnectorsFemale

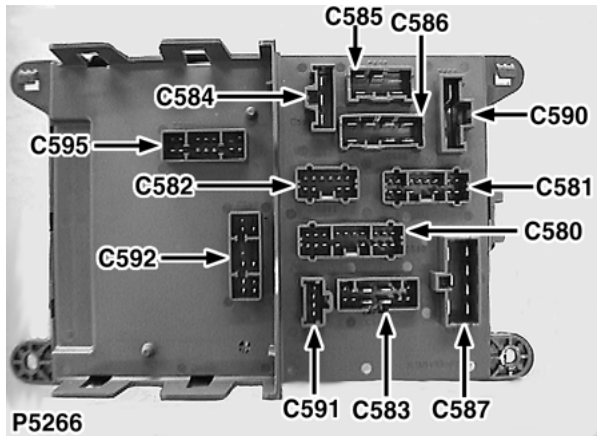

Fuse box - Passenger compartment
Female
NATURAL

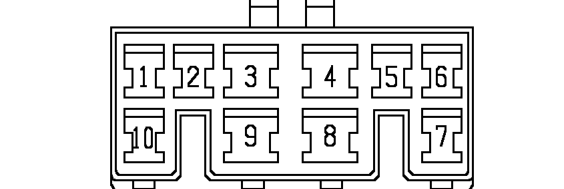

Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | RO | ALL |
| 2 | P | ALL |
| 3 | PN | ALL |
| 4 | PR | ALL |
| 5 | WP | ALL |
| 6 | GR | ALL |
| 7 | RB | ALL |
| 8 | N | ALL |
| 9 | RY | ALL |
| 10 | GW | ALL |
