Female

Make

Land Rover

Model

Freelander Electrical Library

Year

1998–2000

Section

C589 › Female

ConnectorsFemale

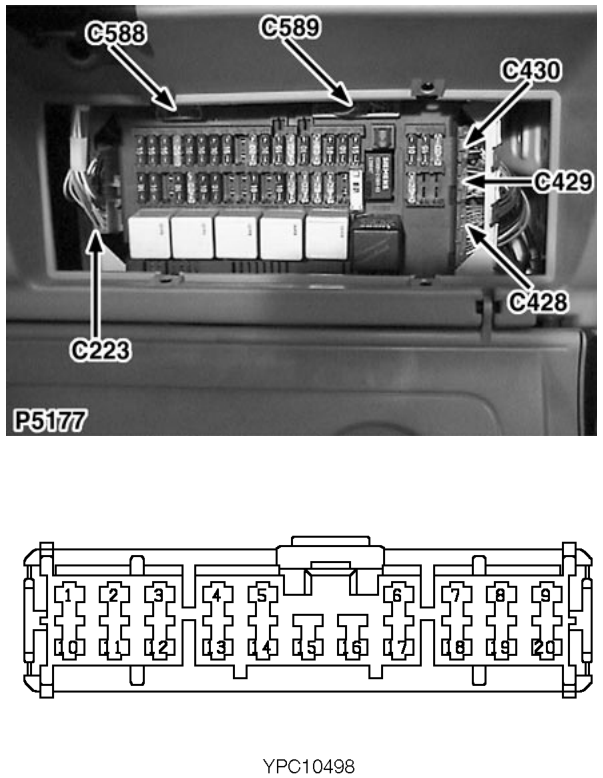

Fuse box - Passenger compartment

Female

LIGHT GREY

Behind fascia trim panel

Cav	Col	CCT
1	UK	ALL
2	RG	ALL
3	RY	ALL
5	WN	ALL
6	PB	ALL
7	GY	ALL
8	RP	ALL
9	G	ALL
10	BW	ALL
11	GW	ALL

Cav	Col	CCT
12	UY	ALL
13	GR	ALL
14	UG	ALL
15	B	ALL
16	GP	ALL
17	G	5
18	RB	ALL
19	RO	ALL
20	P	ALL
