Male
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 1998–2000
- Section
- C607 › Male
ConnectorsMale
Body harness to taildoor harness

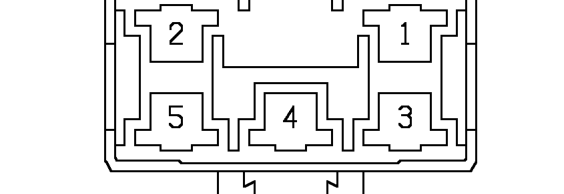

Male
BROWN

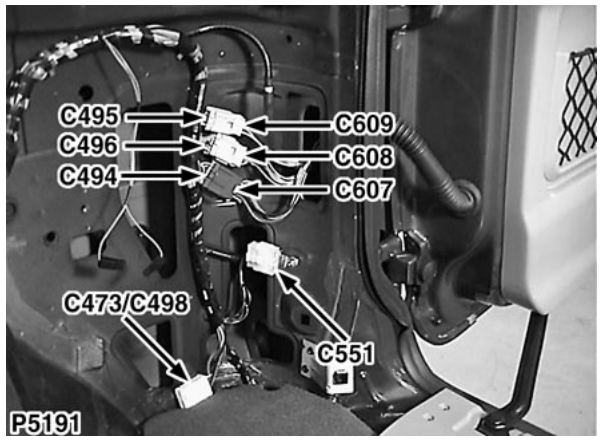

Behind RH rear trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | UB | 7 |
| 2 | UG | 7 |
| 3 | N | 7 |
| 4 | B | 7 |
| 5 | G | 7 |
