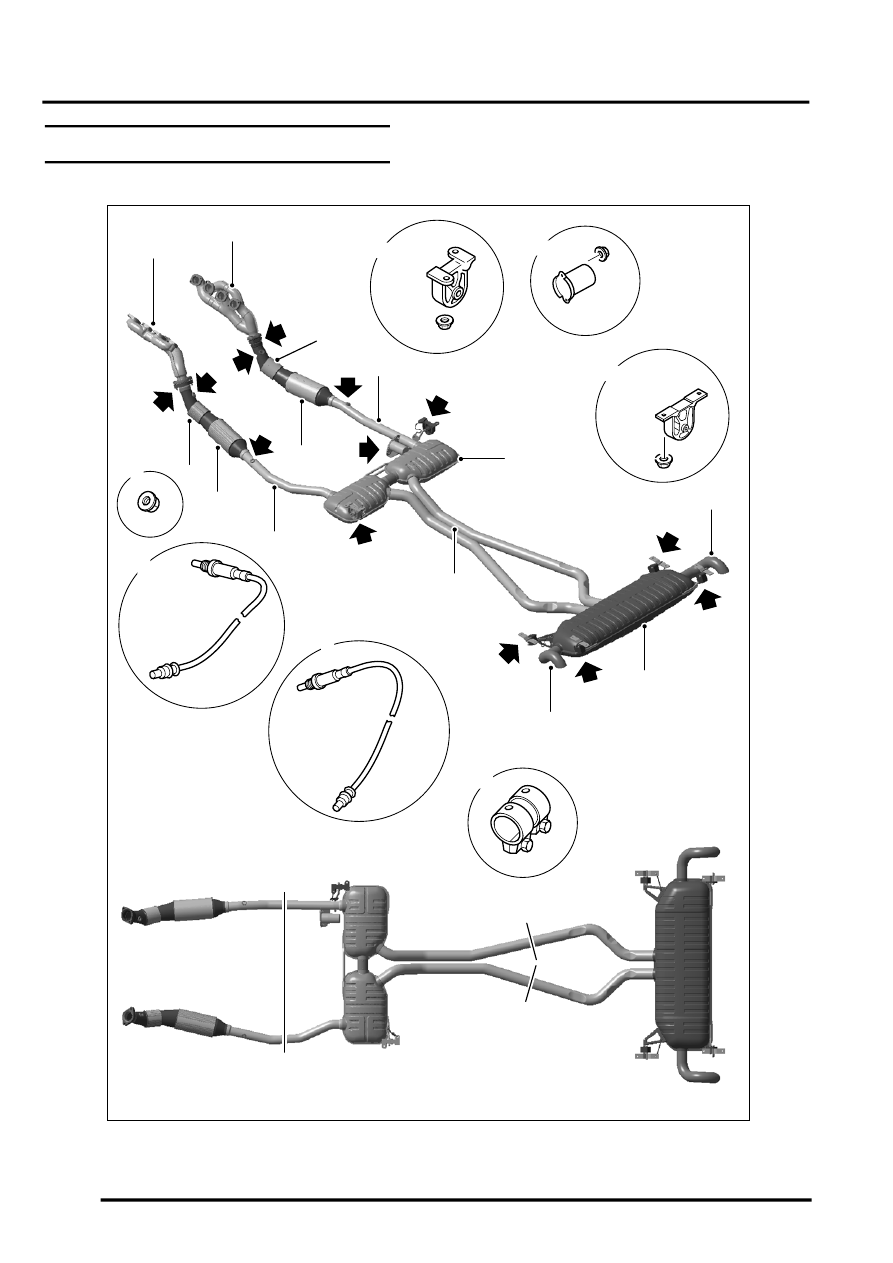

L322 Range Rover Exhaust System Component Layout
MANIFOLDS AND EXHAUST SYSTEM – V8
DESCRIPTION AND OPERATION
30-2-5
1 Left manifold
2 Right manifold
3 Exhaust flange nuts
4 Pre-catalyst Heated Oxygen Sensor (HO2S)
5 Pre-catalyst
6 Main catalyst
7 Main Catalyst Heated Oxygen Sensor (HO2S)
8 Left front pipe
9 Right front pipe
10 Mass Damper
11 Mounting bracket (2 off)
12 Front silencer assembly
13 Rear pipe
14 Mounting bracket (4 off)
15 Tailpipe
16 Rear silencer assembly
17 Repair sleeve
