L322 Range Rover Service Procedures
AUTOMATIC TRANSMISSION - ZF 5HP24
44-2-16 REPAIRS

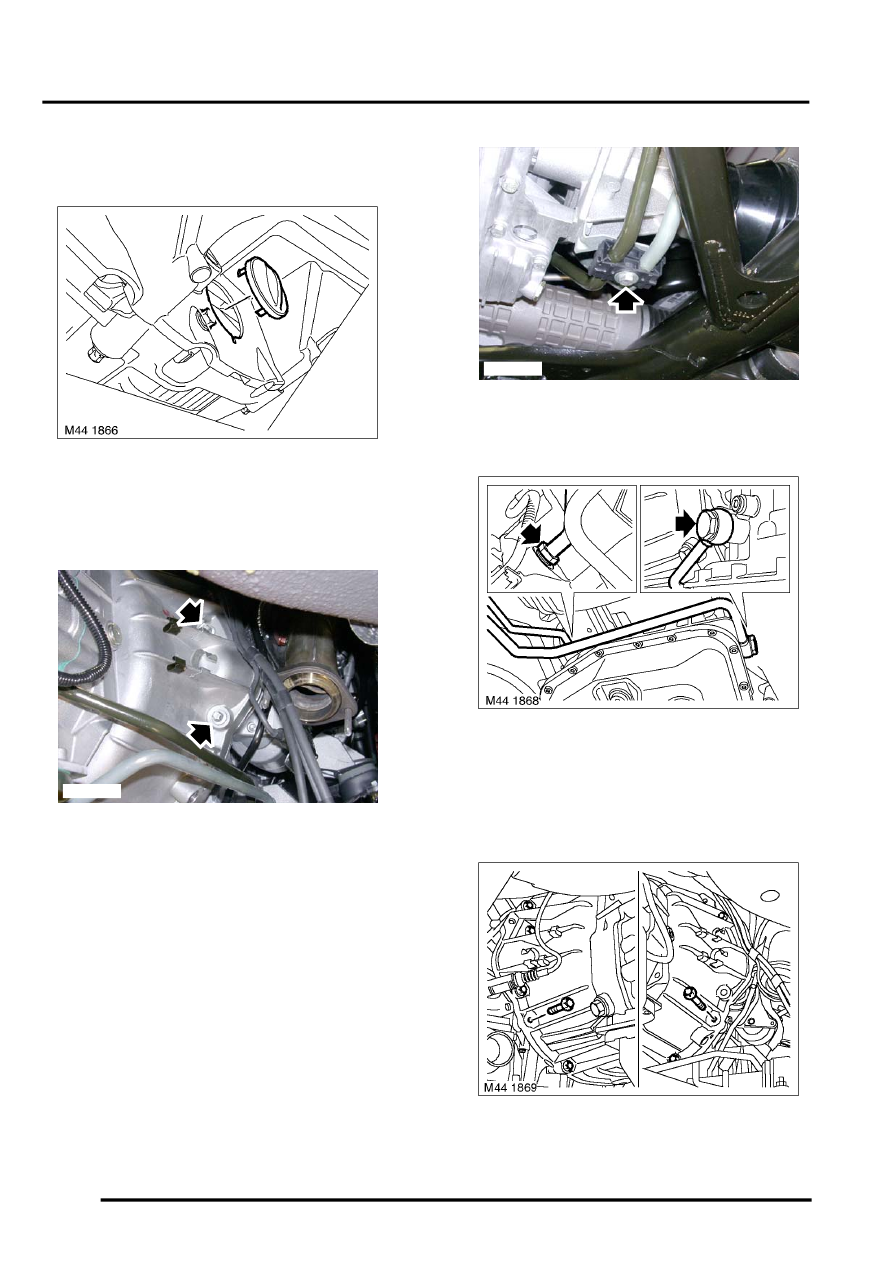

25. Remove undertray.
26. Remove grommet from bell housing to gain
access to torque converter retaining bolts.
27. Rotate crankshaft for access and remove 4
bolts securing drive plate to torque converter.
28. Remove 2 bolts securing starter motor and tie
aside.
29. Remove bolt securing fluid cooler saddle clamp
to sump.
30. Remove banjo bolt securing fluid cooler pipe to
LH side of gearbox and discard sealing
washers.
31. Release fluid cooler pipe from RH side of
gearbox and discard 'O' ring.
32. Remove 8 Torx bolts from bell housing.
M44 1872
M44 1867
