AUTOMATIC TRANSMISSION - ZF 5HP24
REPAIRS
44-2-3
REPAIRS

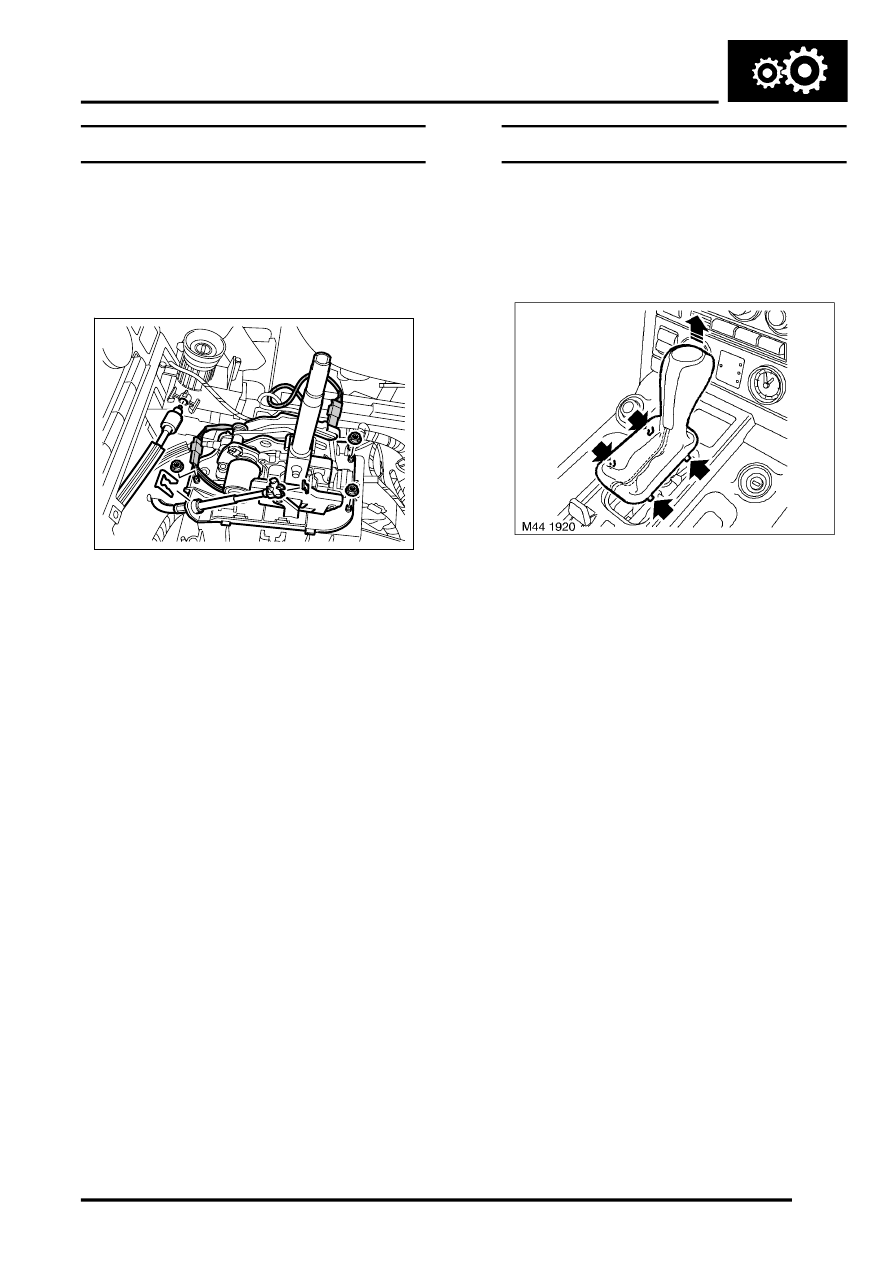

Lever - gearshift selector assembly
$% 44.15.04
Remove
1. Remove centre console.
2. Disconnect shift interlock cable from ignition
barrel.
3. Remove clip securing outer gear shift cable to
mechanism.
4. Release and remove clip securing inner gear
shift cable to mechanism, collect plastic spacer
from cable.
5. Disconnect 2 multiplugs from selector
mechanism.
6. Remove 3 nuts securing selector mechanism to
carrier, remove mechanism.
Refit
1. Position mechanism to carrier, fit nuts and
tighten to 25 Nm (18 lbf.ft).
2. Connect multiplugs to mechanism.
3. Fit plastic spacer to selector cable, secure
cable to mechanism.
4. Connect shift interlock cable to ignition switch
barrel.
5. Fit centre console.
Knob - selector lever
$% 44.15.07
Remove
1. Release 4 clips securing gear-lever gaiter to
centre console.
2. Pull gear knob upwards to disengage locating
tang from gear selector lever.
WARNING: Gear knob will be released
suddenly, keep face clear of gear knob
during removal.
Refit
1. Position gear knob to gear selector lever
engaging locating tang on knob with slot in
selector lever.
2. Push gear knob fully on to gear selector lever.
3. Fit and secure gear lever gaiter.
M44 1917
