L322 Range Rover Service Procedures
AUTOMATIC TRANSMISSION - ZF 5HP24
44-2-4
REPAIRS
Rod/cable assembly - selector
$% 44.15.08
Remove
1. Position vehicle on lift.
2. Select 'P'.
3. Remove centre console.

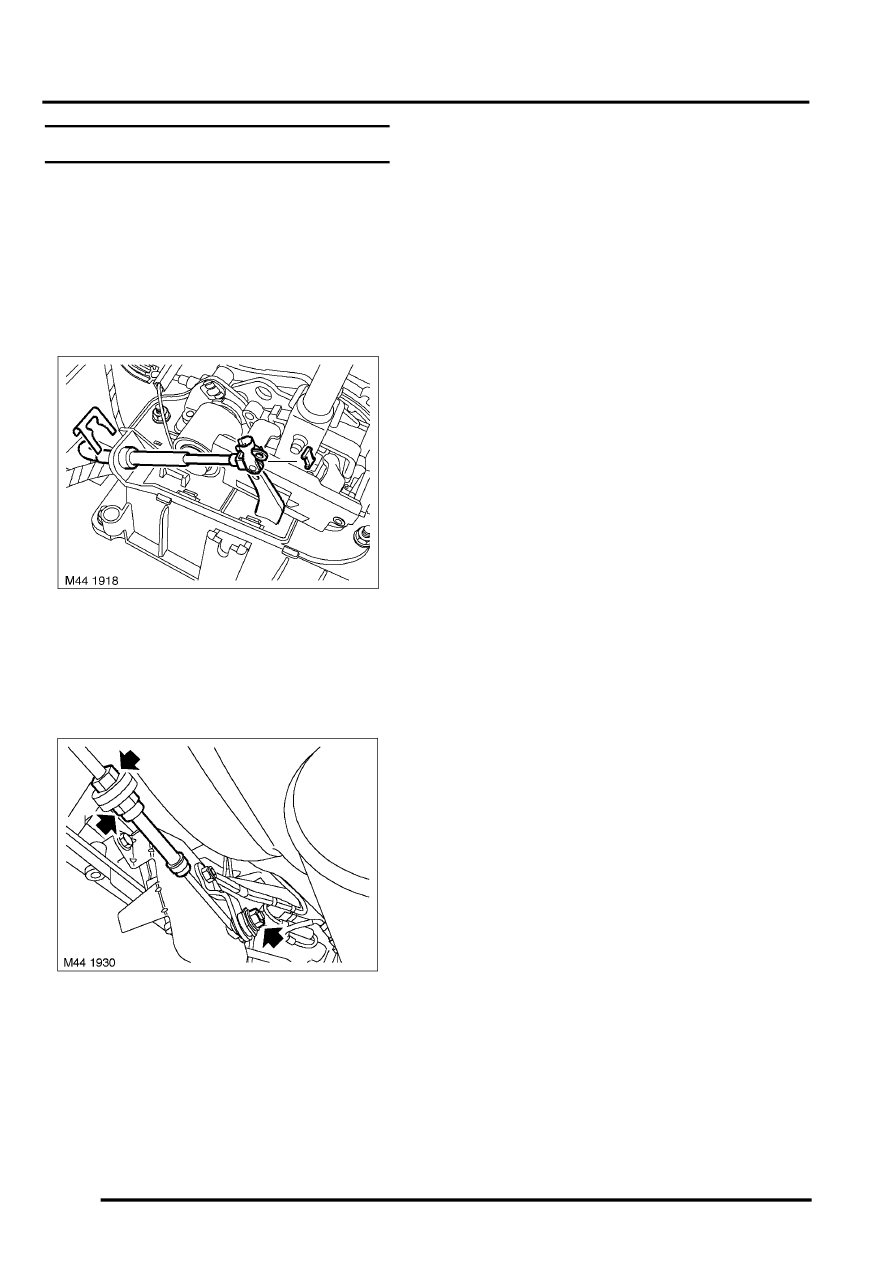

4. Remove clip securing outer gear shift cable to
mechanism.
5. Release and remove clip securing inner gear
shift cable to mechanism, collect plastic spacer
from cable.
6. Loosen nut securing selector cable to selector
lever and release selector cable from bracket.
7. Remove cable and grommet through carpet
access panel.
Refit
1. Position cable through access panel, fit
grommet and carpet.
2. Position selector cable through bracket and
selector lever and secure selector cable to
bracket.
3. Tighten nut securing selector cable to selector
lever to 15 Nm (11 lbf.ft).
4. Position cable to selector mechanism, fit
spacer and secure with clips.
5. Fit centre console.
