L322 Range Rover Service Procedures
AUTOMATIC TRANSMISSION - ZF 5HP24
REPAIRS
44-2-7

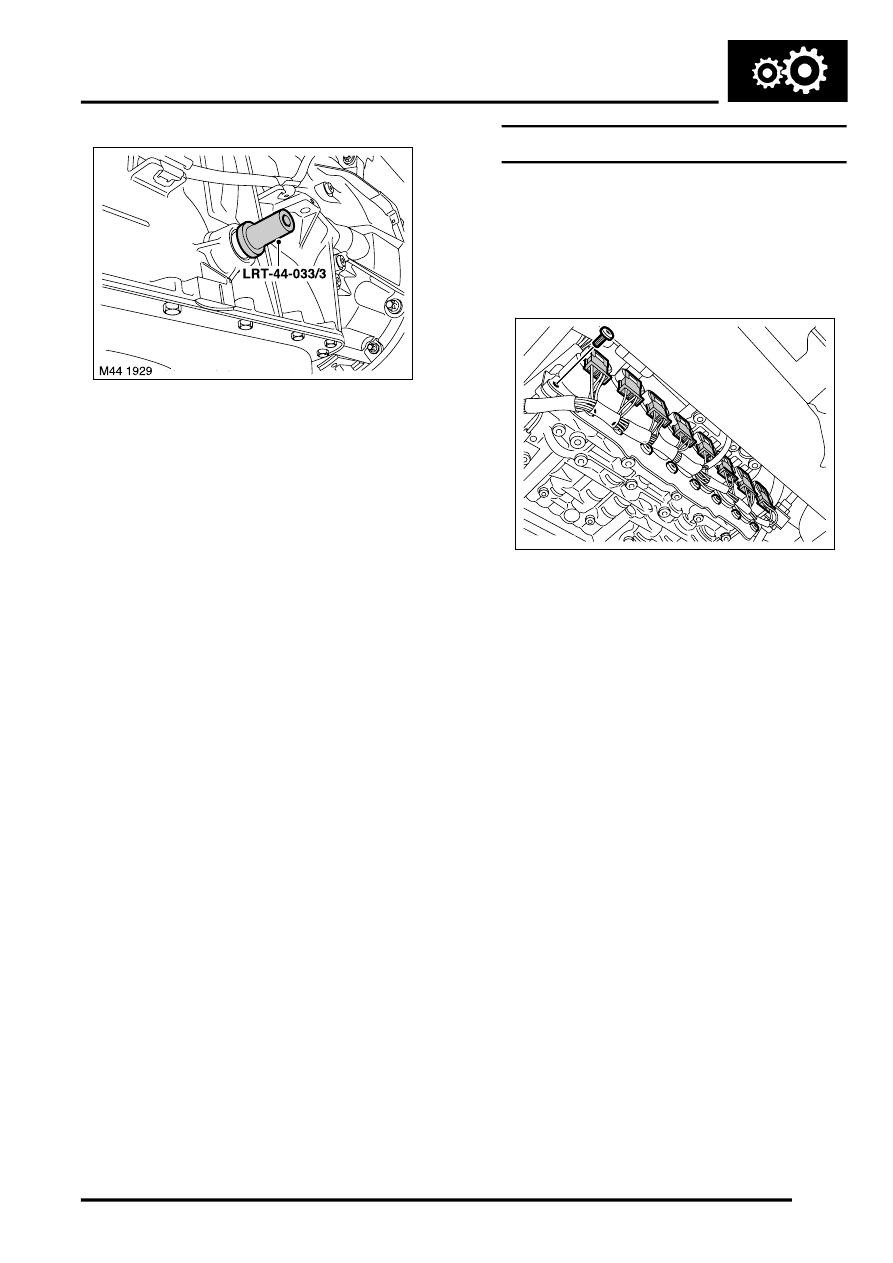

2. Using LRT-44-033/3 fit new oil seal to selector
shaft recess.
3. Clean inhibitor switch and mating face on
gearbox.
4. Position inhibitor switch to dowel, fit 2 bolts
securing inhibitor switch and tighten to 10 Nm
(7 lbf.ft).
5. Position inhibitor switch guard to gearbox, fit 2
bolts securing inhibitor switch guard and tighten
to 10 Nm (7 lbf.ft).
6. Position selector lever to selector shaft, fit nut
securing selector shaft and tighten to 10 Nm (7
lbf.ft).
7. Connect battery earth lead.
Solenoid - shift
$% 44.15.45
Remove
1. Remove sump.
5HP24, REPAIRS, Gasket - fluid pan.
2. Disconnect multiplugs from solenoid valves.
3. Remove 9 Torx bolts securing solenoid
retaining bracket, remove bracket.
4. Remove solenoid valve and remove 'O' rings
where fitted.
Refit
1. Clean solenoid mating faces.
2. Fit new 'O' rings to solenoid and lubricate with
transmission fluid.
3. Fit solenoid to valve block.
4. Fit solenoid retaining bracket, fit Torx bolts and
tighten to 10 Nm (7 lbf.ft)
5. Connect multiplugs to solenoid valves.
6. Fit sump.
5HP24, REPAIRS, Gasket - fluid pan.
M44 1814
