L322 Range Rover Service Procedures
AUTOMATIC TRANSMISSION - ZF 5HP24
44-2-18 REPAIRS

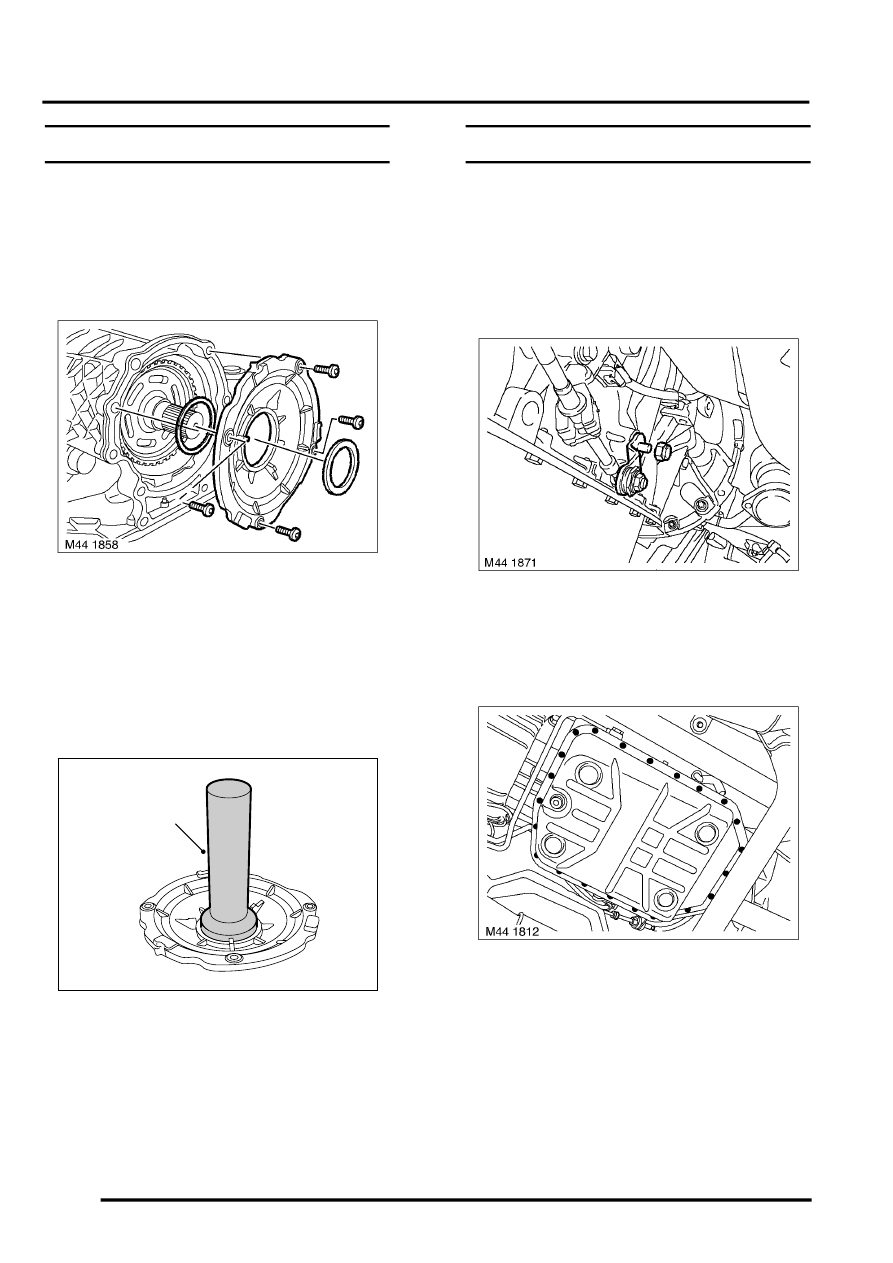

Fluid seal - rear
$% 44.20.18
Remove
1. Remove transfer gearbox.
2. Remove 4 Torx bolts securing output flange
housing and remove housing.
3. Remove bearing.
4. Carefully remove and discard oil seal and 'O'
ring.
Refit
1. Clean housing and mating faces.
2. Using LRT-44-029 fit new oil seal.
3. Lubricate new 'O' ring and fit to housing.
4. Lubricate and fit bearing.
5. Fit housing to gearbox, fit and tighten Torx bolts
to 10 Nm (7 lbf.ft)
6. Fit transfer gearbox.
Gasket - fluid pan
$% 44.24.05
Remove
1. Drain gearbox fluid.
5HP24, ADJUSTMENTS, Gearbox fluid -
drain & refill.
2. Remove nut securing selector lever to gearbox
selector shaft and release lever.
3. Remove 2 bolts securing inhibitor switch guard
and remove guard.
4. Evenly and progressively loosen and remove
22 Torx bolts from sump.
5. Remove sump and discard gasket.
M44 1859
LRT-44-029
