L322 Range Rover Service Procedures
AUTOMATIC TRANSMISSION - ZF 5HP24
REPAIRS
44-2-5

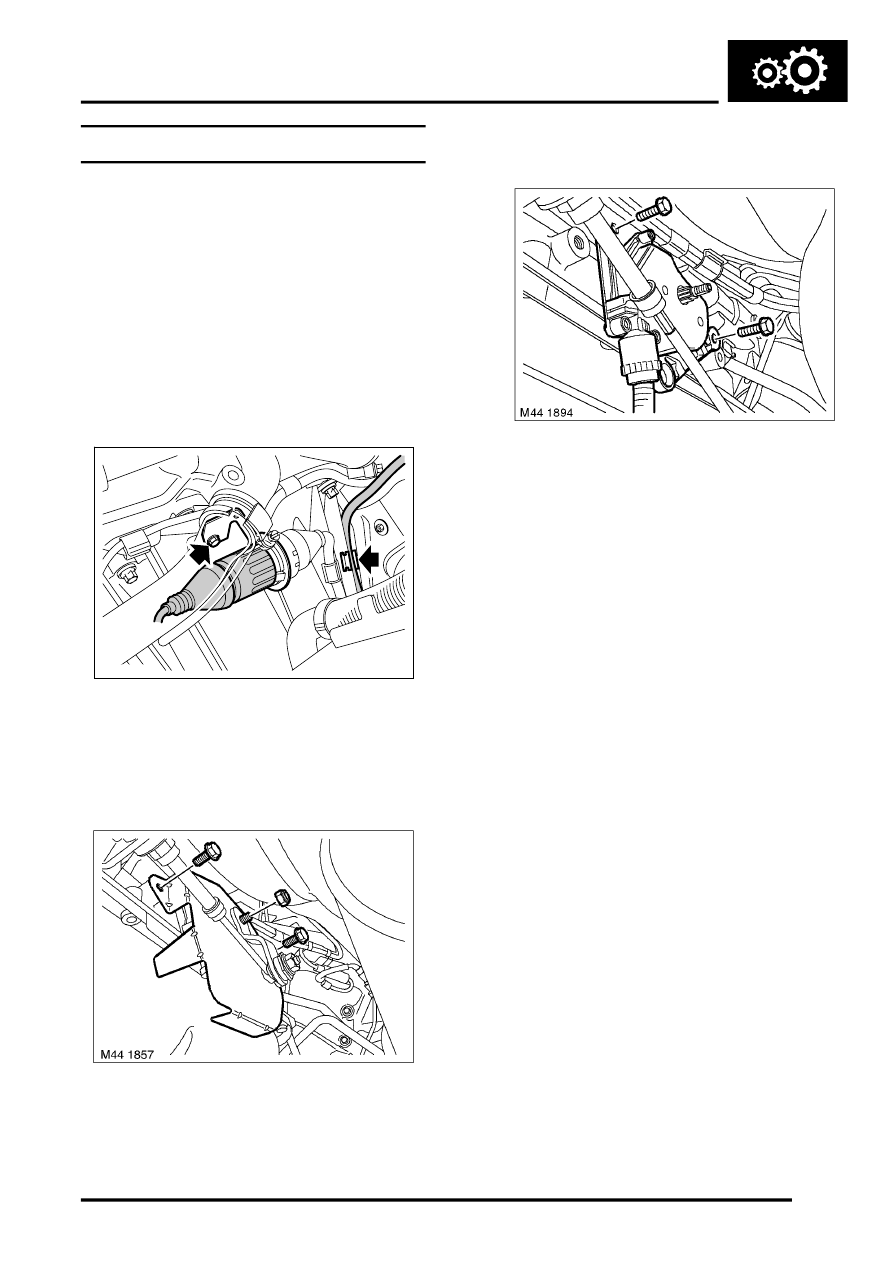

Switch - starter inhibitor
$% 44.15.19
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Disconnect battery earth lead.
2. Remove air intake plenum.
3. Disconnect multiplug from inhibitor switch.
4. Remove bolt securing inhibitor switch multiplug
bracket and release harness from gearbox.
5. Disconnect breather hose from gearbox.
6. Raise vehicle on lift.
7. Release inhibitor switch harness from retaining
clips and position aside.
8. Remove nut securing selector lever to inhibitor
switch and release lever.
9. Remove 2 bolts securing inhibitor switch guard
and remove guard.
10. Remove 2 bolts securing inhibitor switch to
gearbox and remove inhibitor switch.
Refit
1. Clean inhibitor switch and mating face on
gearbox.
2. Fit inhibitor switch onto dowel, fit bolts and
tighten to 10 Nm (7 lbf.ft)
3. Fit and secure inhibitor switch harness and
connect multiplug.
4. Position inhibitor switch harness bracket, fit and
tighten bolt to 10 Nm (7 lbf.ft)
5. Fit inhibitor switch guard, fit and tighten bolts to
10 Nm (7 lbf.ft)
6. Fit selector lever to inhibitor switch, fit nut and
tighten to 10 Nm (7 lbf.ft)
7. Lower vehicle.
8. Connect breather hose to gearbox.
9. Fit air intake plenum.
10. Connect battery earth lead.
M44 1856
