L322 Range Rover Service Procedures
AUTOMATIC TRANSMISSION - ZF 5HP24
REPAIRS
44-2-9

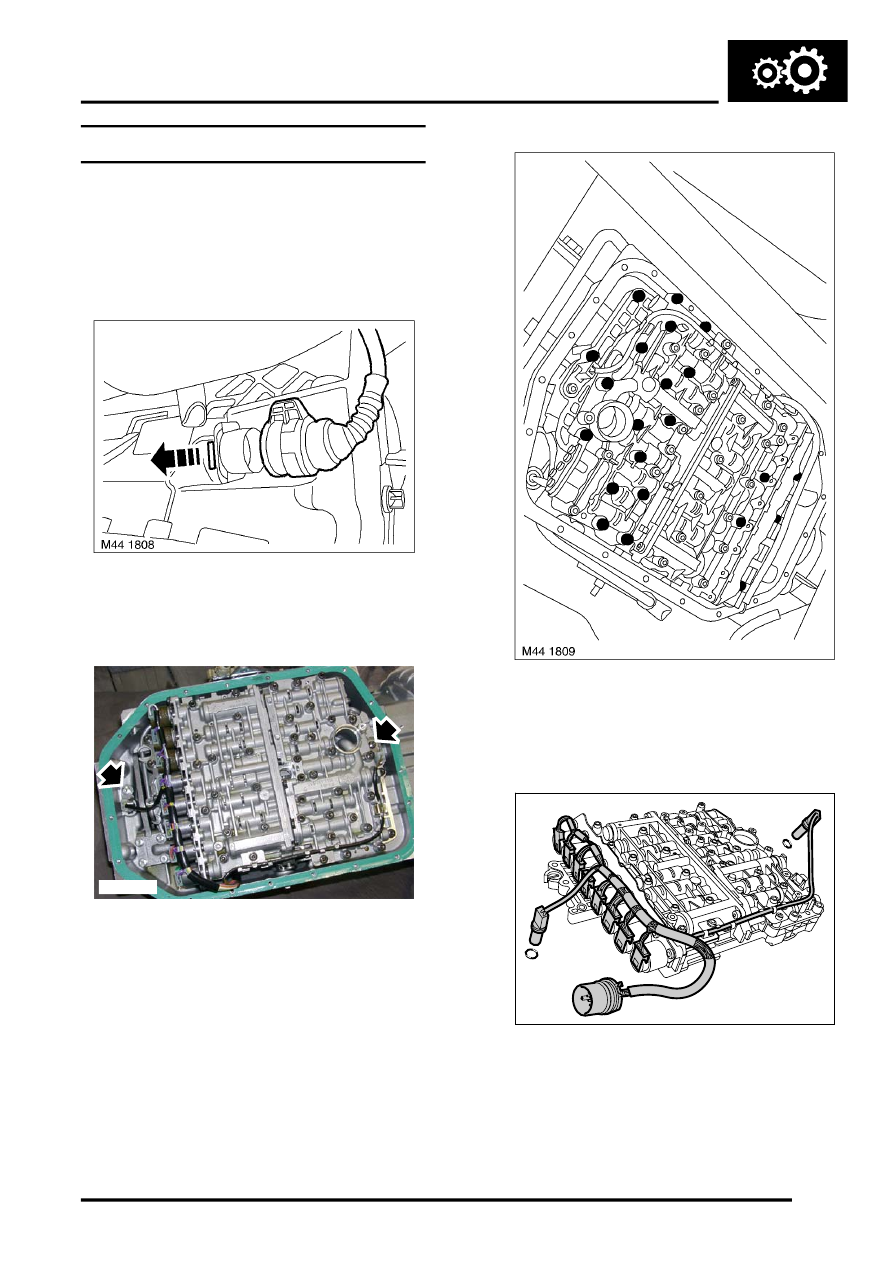

Harness - solenoid valve
$% 44.15.52
Remove
1. Remove gearbox fluid filter.
5HP24, REPAIRS, Filter - fluid.
2. Disconnect multiplug from gearbox.
3. Remove retaining clip from multiplug and
release plug from gearbox casing.
4. Remove 2 Torx bolts securing speed sensor
clamps, remove clamps and sensors.
5. Evenly and progressively loosen and remove
22 large shouldered Torx bolts from valve
block.
6. Remove valve block assembly.
7. Noting fitted position, disconnect 10 multiplugs
from sensors and solenoids.
8. Remove harness, remove and discard 'O' rings.
M44 1905
M44 1906
