EXTERIOR FITTINGS
REPAIRS 76-2-15

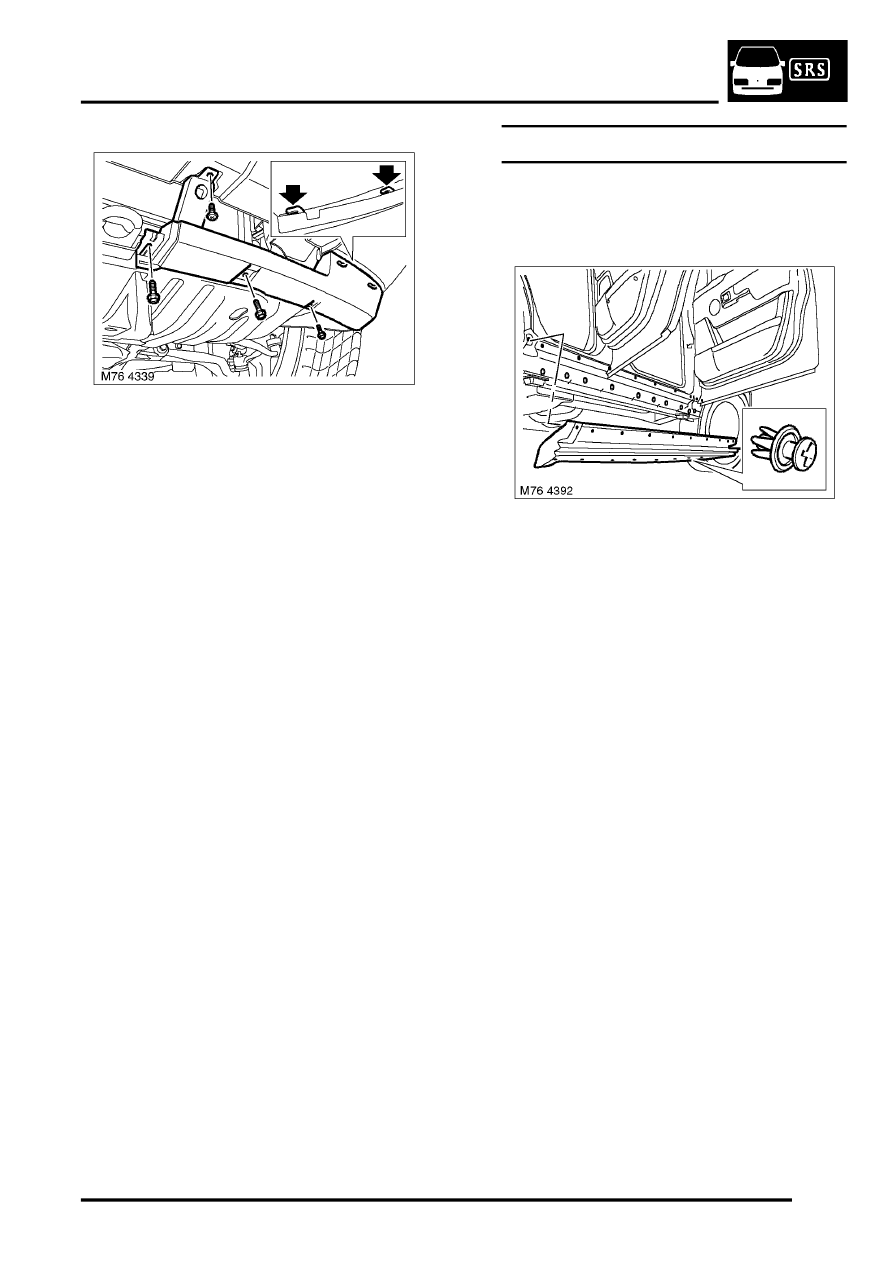

3. Remove 3 screws securing bumper extension
to undertray.
4. Remove screw securing extension to bumper.
5. Release extension from wheel arch liner,
release clips and remove from bumper.
Refit
1. Fit screws and secure bumper extension to
front bumper.
2. Fit and tighten screw securing bumper
extension to wheel arch liner.
3. Fit and secure towing eye finisher.
Finisher - sill
$% 76.43.28
Remove
1. Remove 8 scrivets from underside of sill
finisher.
2. Carefully release 10 clips securing finisher to
sill. Remove sill finisher.
NOTE: Do not carry out further dismantling if
component is removed for access only.
3. Remove clips from sill finisher.
Refit
1. Fit clips to sill finisher.
2. Fit and secure finisher to sill clips.
3. Fit scrivets to sill finisher.
